Katalon Web Test Automation Tutorial

.

Contents:

Katalon Studio is an all-in-one test automation solution for Web, API, mobile, and desktop built for both beginners and expert testers.

Katalon Studio is an integrated development environment (IDE) for automated test generation, where you can create, execute and view reports for your automated test. With both manual view and script view, Katalon Studio is suitable even when you have little programming experience, or you are aready an expert in the automated testing field.

With Katalon Studio, you can do the following:

• Web testing. See Introduction to Web Testing.
• Mobile testing for Android and iOS. See Introduction to Mobile Recorder.
• API testing. See Introduction to API Testing.
• Desktop app testing. See Introduction to Desktop App Testing.
• Data-driven testing. See Data-driven Testing with Katalon Studio.
• BDD testing. See BDD Testing Framework (Cucumber integration).

Download Katalon Studio

GETTING STARTED WITH KATALON STUDIO V7

Getting Started References: https://docs.katalon.com/katalon-studio/docs/record-web-utility.html

1. CREATE PROJECT

1. Run Katalon Studio

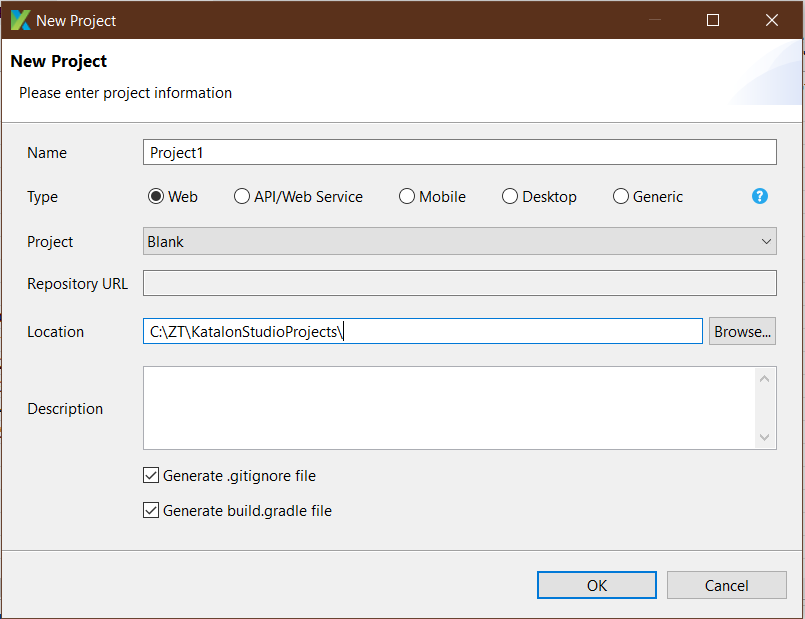

2. Create new project Go to menu File/New/Project Name= Project1 Location= C:\ZT\KatalonStudioProjects\ Press OK

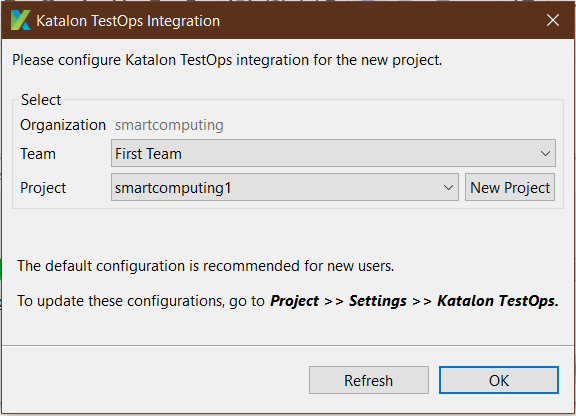

3. TestOps Integration (optional) Click OK.

4. Project creation done.

2. CREATE TEST CASE (RECORD APPROACH)

1. Create new test case Go to menu file/new/test case

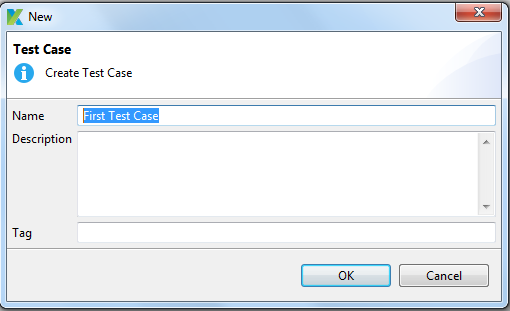

2. Enter test case information Name= New Test Case 1

3. Select Record Web button

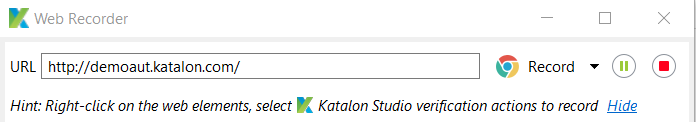

4. Enter test url URL= http://demoaut.katalon.com/ Click the Record button when you are ready to record.

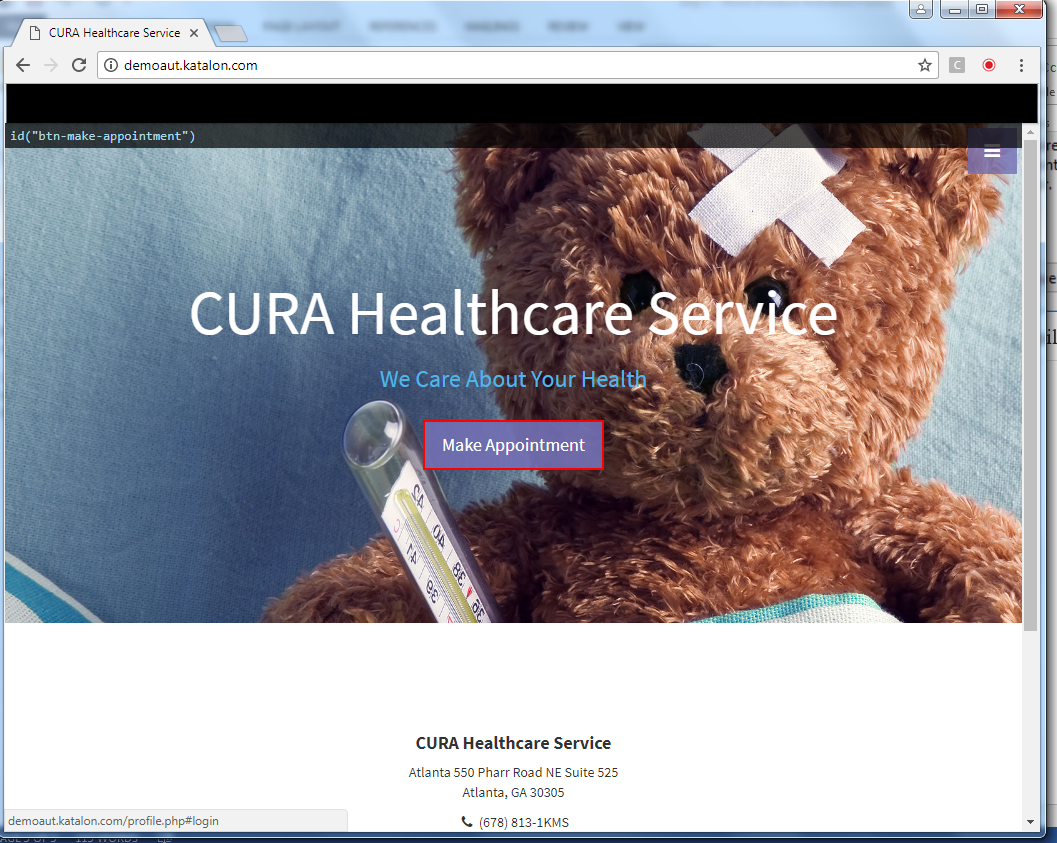

5. Observe that the web page is successfully loaded. Find Make Appointment button.

6. Click Make Appointment button

7. Enter login details using demo account credential Username = John Doe Password= ThisIsNotAPassword Press the Login button

Note: The recorded steps will be generated automatically in Recorded Actions. When you type in a Password field, Katalon Web Recorder uses the 'Set Encrypted Text' keyword automatically. The input's value will be encrypted to ensure security.

8. Observe that the Make Appointment page is loaded.

9. Find the logout menu and click the logout menu.

10. View the recorded actions

11. Stop the recording

12. Save the script.

13. Script has been saved.

14. Test run the script

REFERENCE https://docs.katalon.com/katalon-studio/docs/record-web-utility.html#record-a-new-test-case

Record Using Existing Test Case Users can be more productive while modifying existing test cases. Instead of creating a brand new test case whenever there are changes to the UI, risks of overlooking how new changes might affect existing features are now minimized.

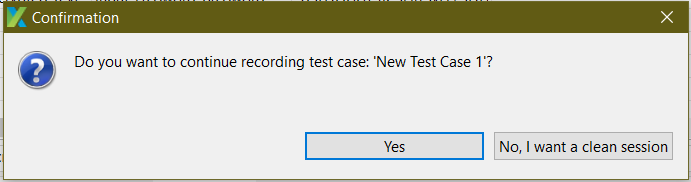

1. Open any existing test case to continue recording. 2. Click on the Record icon to open Web Recorder. Click Yes to continue recording the same test case. 3. All the existing test steps and Test Case variables will be imported to the Recorded Actions and Variables tabs in Web Recorder respectively. You won't need to repeat the test steps having been recorded. 4. Interact with the AUT. When saving your script, Katalon Studio automatically detects similar existing objects in the Objects Repository and asks you for further action to optimize the Object Repository. (a) Merge changes into existing objects (b) Create duplicate objects (c) Replace existing objects

https://docs.katalon.com/katalon-studio/docs/record-web-utility.html#record-using-existing-test-case

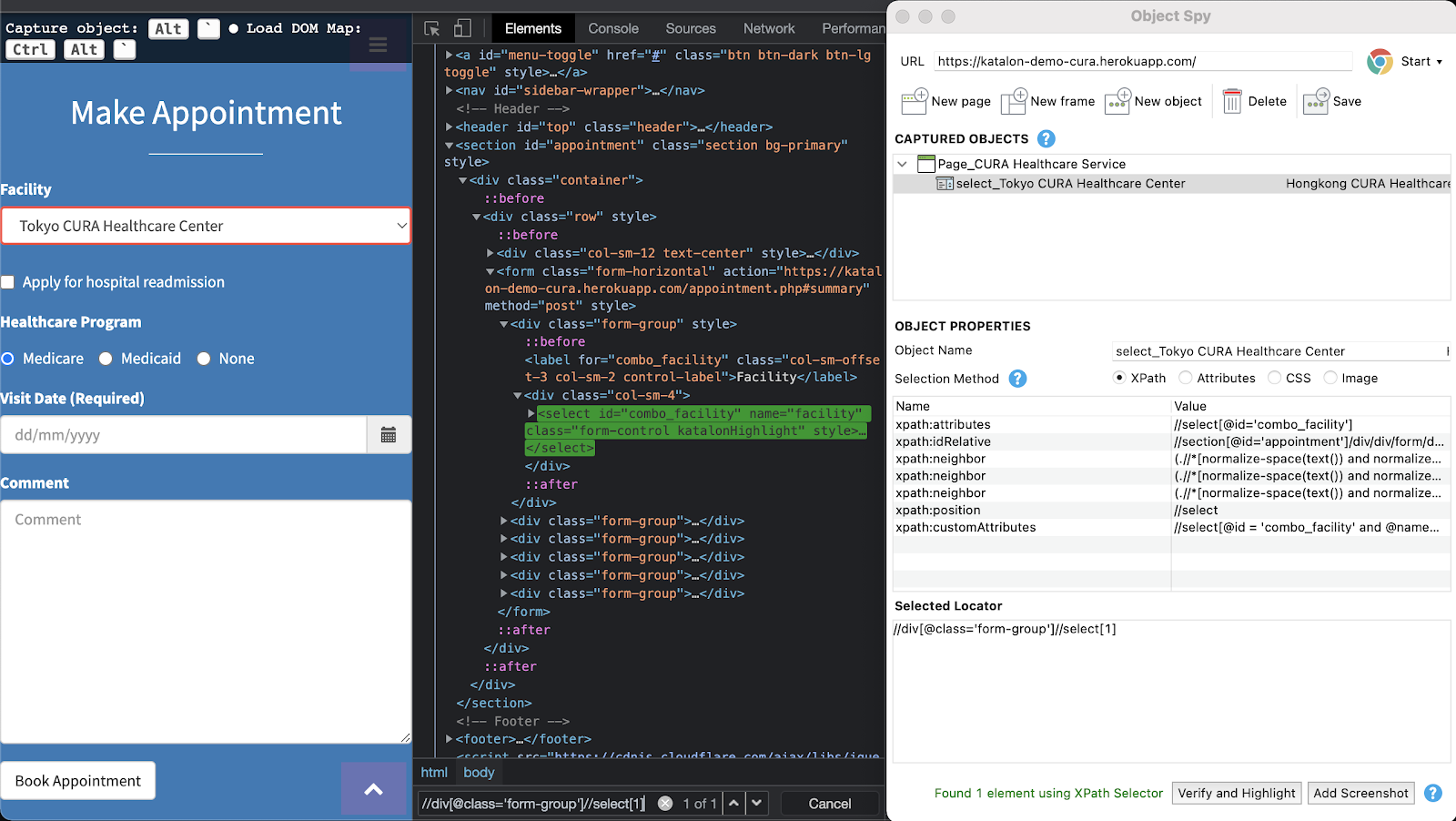

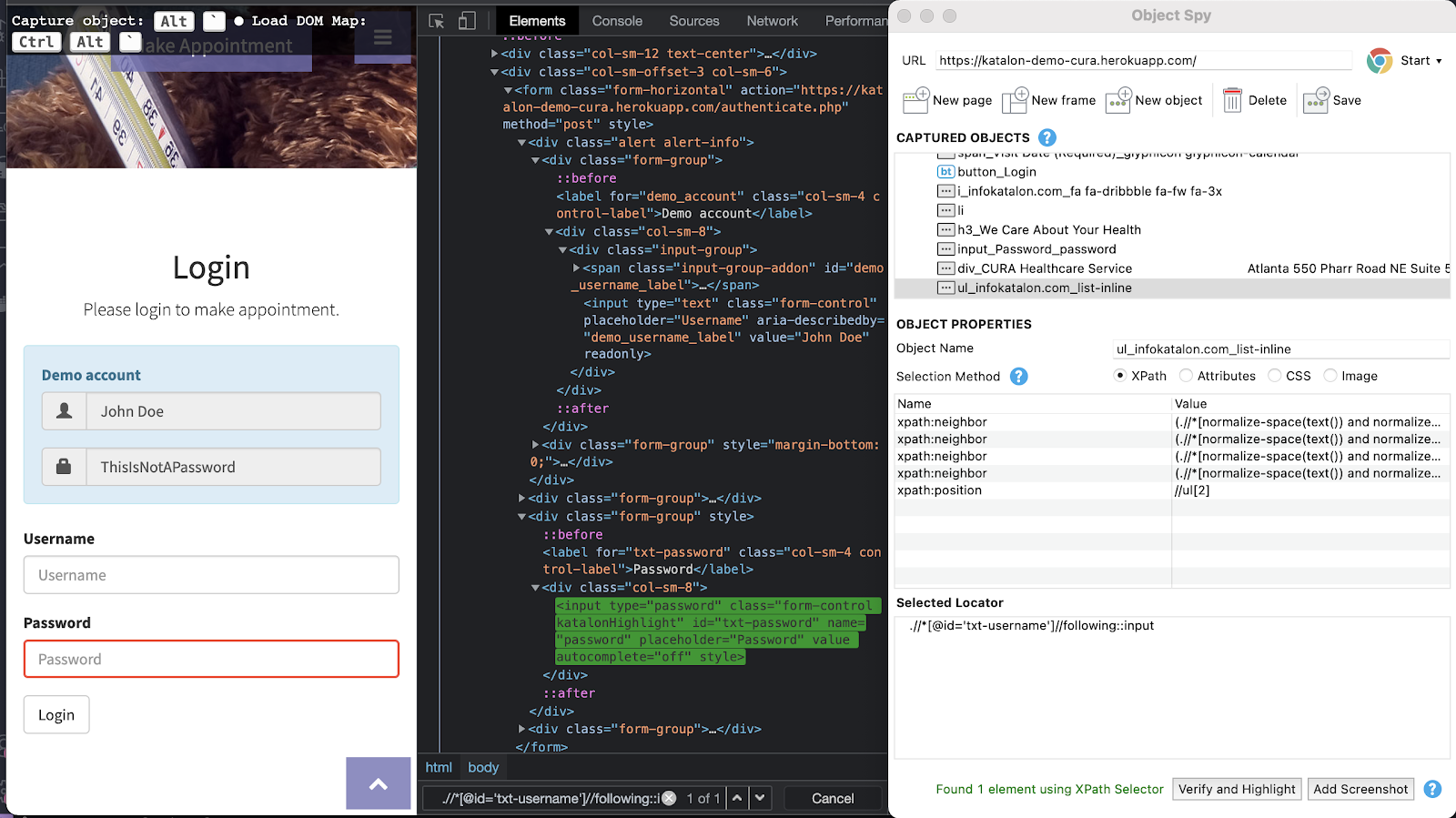

Rename Page Folders and Elements while Recording To organize your test scripts in page object pattern, you need to add test objects in the folder corresponding to the page. This will help you reuse and maintain the objects.

https://docs.katalon.com/katalon-studio/docs/create_test_case_using_record_playback.html#rename-page-folders-and-elements-while-recording

Validate UI elements

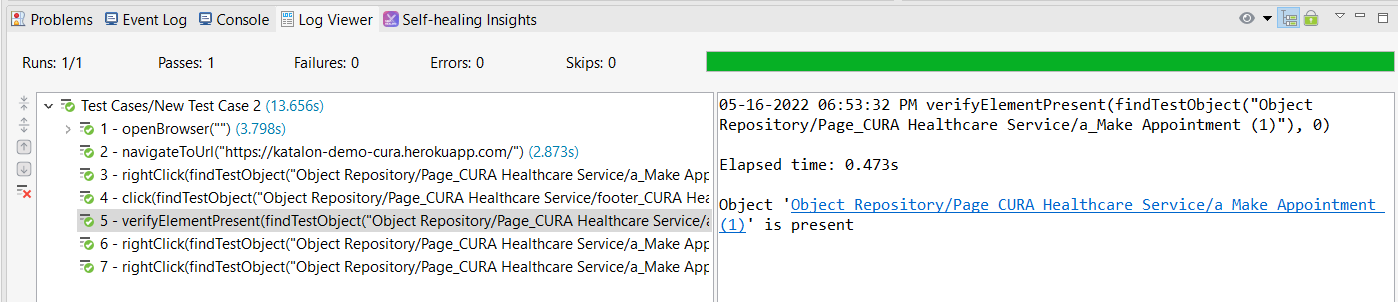

Given that you enter an incorrect username or password, you can validate if the website displays an error message indicating a failed login attempt. Or you can verify if the next screen after a successful login is "right" by verifying if a specific UI element is present. Run the test and observe the Log Viewer output window.

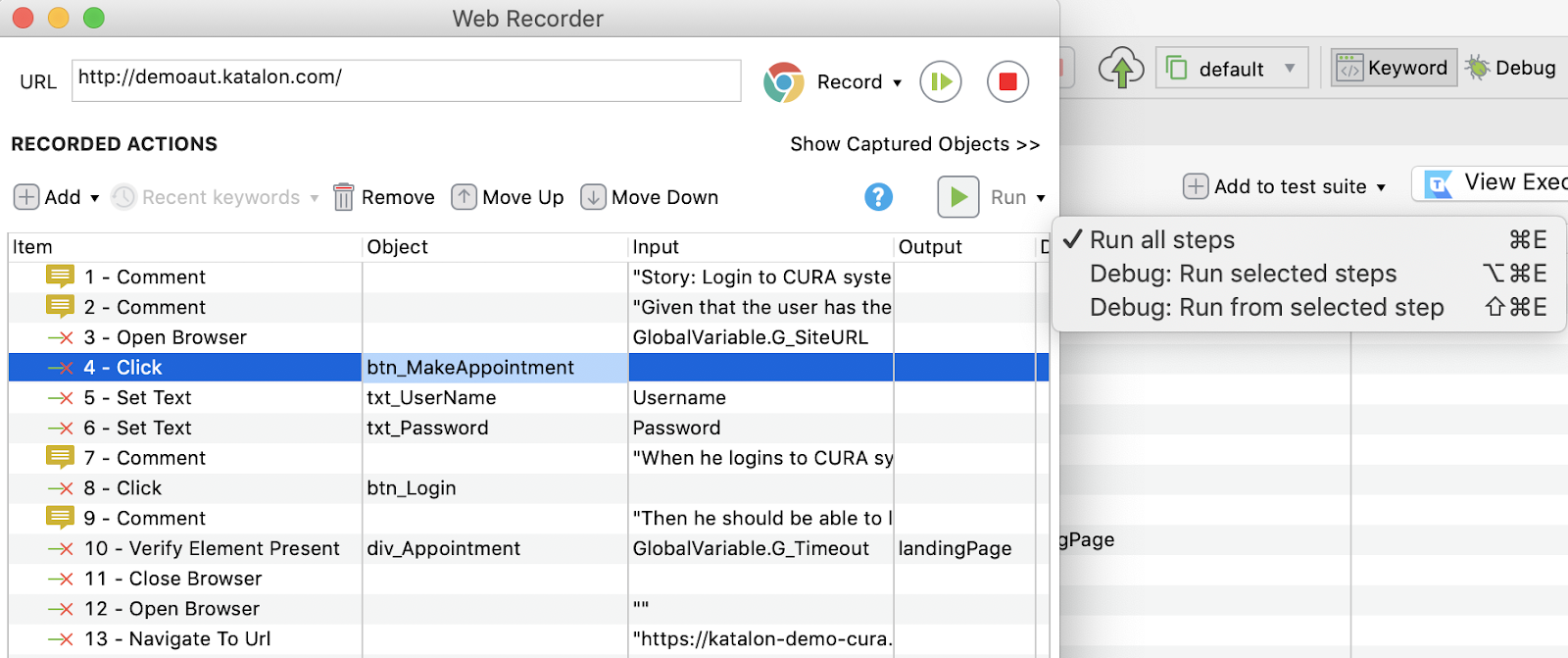

Note: In the drop-down list of the Run button, you can find some Run options. The two of them labeled with "Debug" are advanced options for validating recorded script, and saving you from running all test steps over and over again if you have a Katalon Studio Enterprise license: Run all steps: Execute ALL steps that are enabled on Web Recorder Debug: Run selected steps: Execute only one or many selected steps. You can select multiple steps using either Ctrl or Shift key. The selected steps will be highlighted (e.g. steps #2, #6, #9 and #11 are selected for running).

https://docs.katalon.com/katalon-studio/docs/record-web-utility.html#validate-ui-elements

Note: VerifyElementPresent can further be responded by Failure Handling:

Katalon Web Recorder Utility's Components

Recorded Actions Available actions in Katalon Web Recorder Utility is the same as Katalon Studio's built-in keywords. You can add any action, call another test case, and/or use Custom Keywords.

Captured Objects During your recording, Katalon captures the objects that you have interacted with. When saving test script, Katalon Web Recorder exports a list of objects used in the test case. Learn more about Web UI test objects.

Running Steps In Web Recorder Window

Katalon Studio Tutorial: Using Web Recorder Utility to capture form activities

Creating test cases using Record & Playback

Test recording is the easiest way for new automation testers to start learning test automation. Identifying objects on applications is time-consuming. The Web Recorder Utility function captures your actions being performed on the application and converts them into runnable code in the back-end.

You can quickly automate a few functionalities of your app and save time by recording actions that have to be performed many times in iterative builds. This function supports recording and running the same tests on multiple browsers. This document will show you how to:

1. Record test with the Record Web function
2. Rename Page Folders and Elements while runtime recording

Record Test with the Record Web function

Scenario: To make an appointment

1. Launch the application under test (Example: http://demoaut.katalon.com/)
2. Click the Make Appointment button

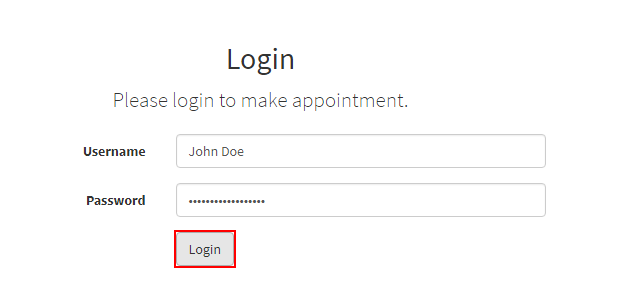

3. Enter a valid username, password, and click Login
4. Make an appointment

Follow the below steps to get familiar with the Record & Playback feature for Web UI tests

Step 1: Launch Katalon Studio and click New > Test Case on the main toolbar. Provide a name for your test case and click OK. An empty test case will be created.

Step 2: Click Record Web from the main toolbar.

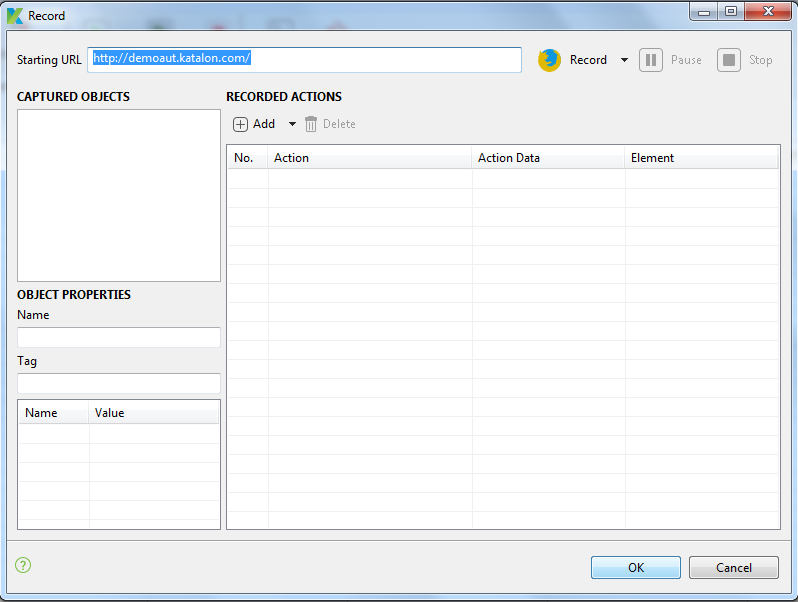

Step 3: The Record dialog will be displayed.

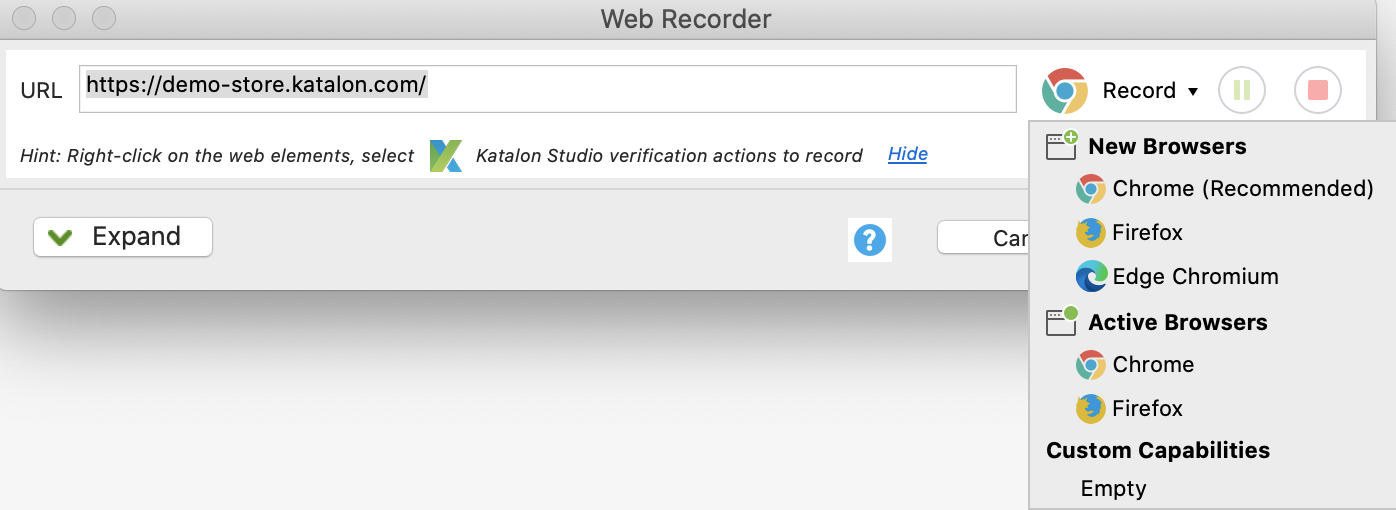

Step 4: Select a browser, then click Record to start recording the test case.

Step 5: Once your application has been launched, click on the Make Appointment button. You will be directed to the Login page.

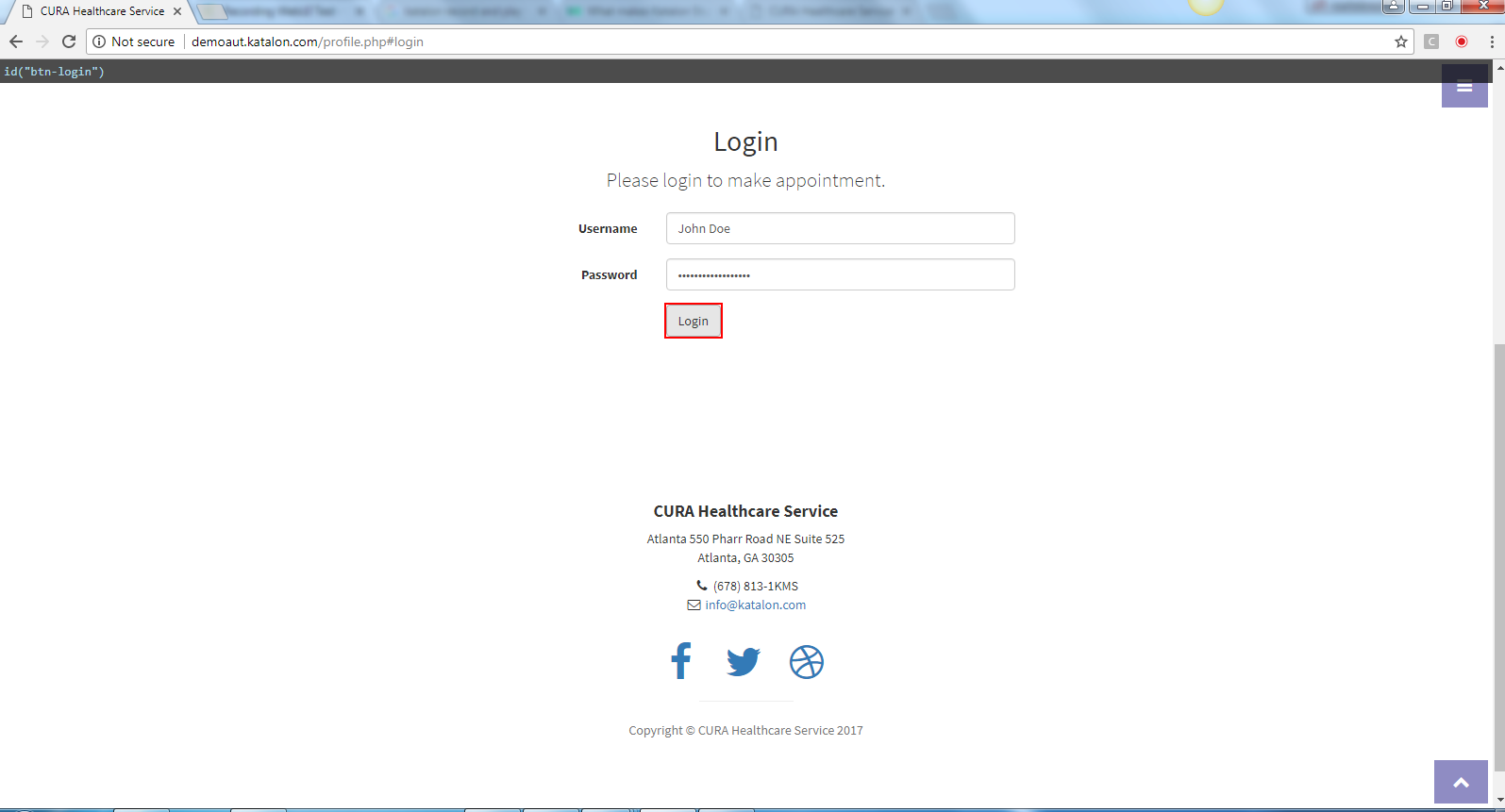

Step 6: Enter valid username and password (John Doe and ThisIsNotAPassword), then click Login.

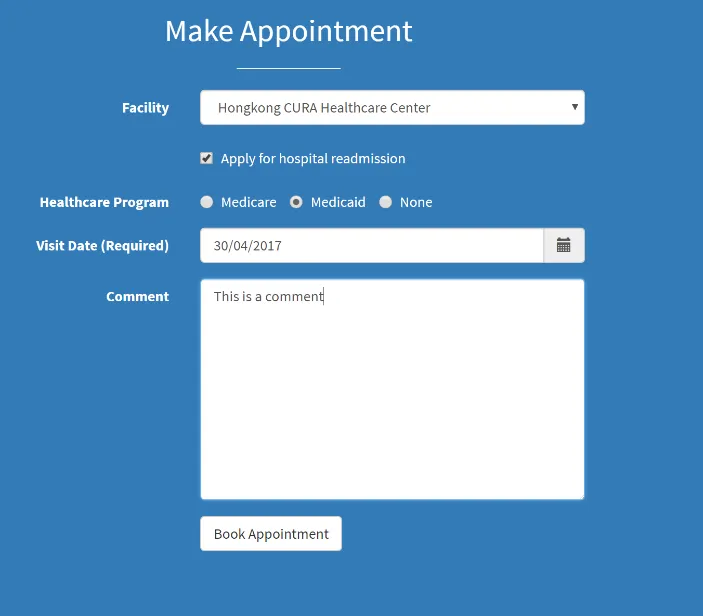

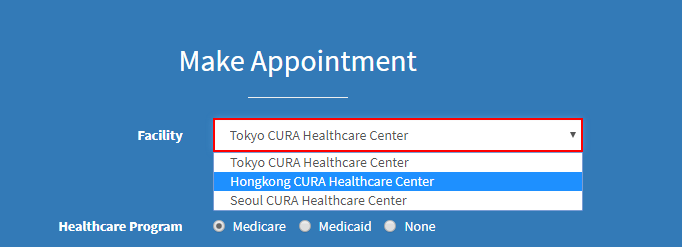

Step 7: Once the Make Appointment page has been loaded, select the value Hongkong CURA Healthcare Center from the Facility drop down menu.

Step 8: Select the Apply for hospital readmission checkbox.

Step 9: Then move the cursor to click on the Medicaid checkbox.

Step 10: Click the calendar icon next to Visit Date (Required). Select a date.

Step 11: Enter text in the Comment field.

Step 12: Click Book Appointment.

Step 13: You can stop the recording anytime by clicking Stop. Katalon Studio allows users to select the Selection Method for the captured objects. The Basic mode is recommended to manual testers who have just started automated testing. With basic mode, Katalon Studio will automatically generate robust and unique selectors for captured objects.

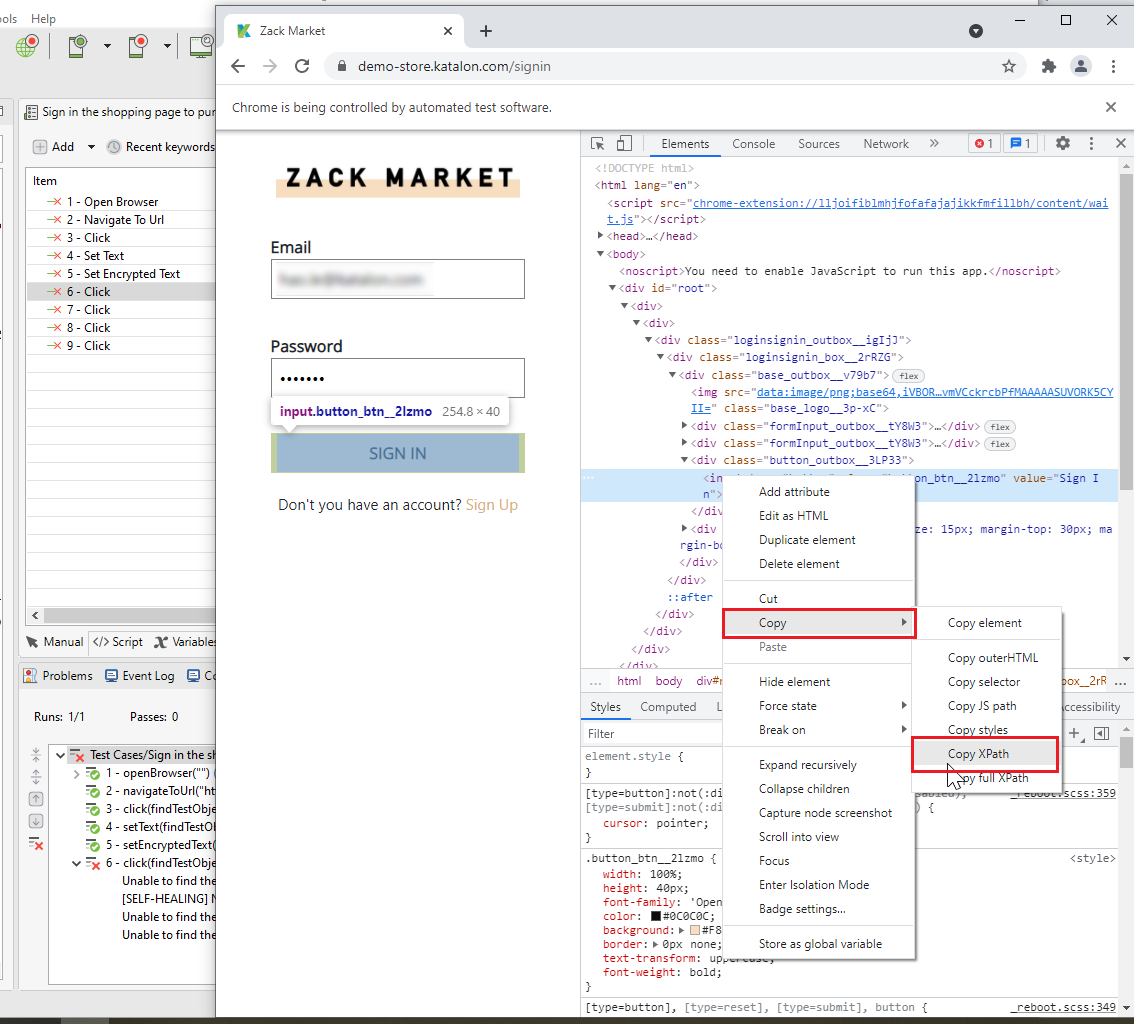

Advanced testers who want to manually input the selectors have the option to choose between CSS and XPath modes. For more details about Selection Method, refer to this guide.

Step 14: When you are done recording, click OK to save the recorded actions into Katalon Studio.

You will be prompted to save captured objects to the Object Repository, which can be reused whenever needed. You can also create a folder to maintain page objects in desired structure. Click OK to continue.

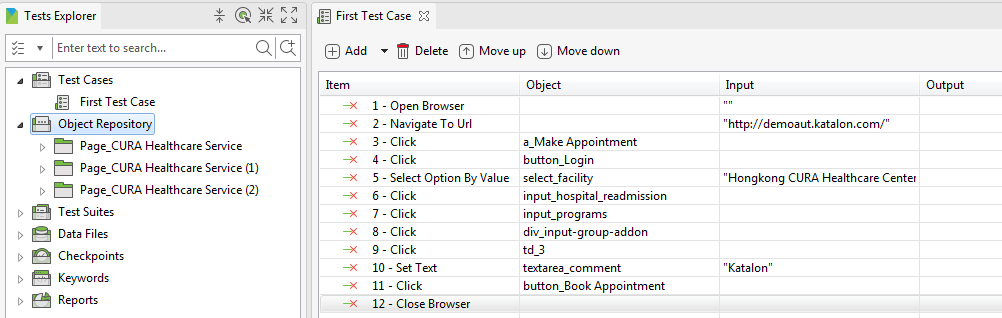

Step 15: Recorded objects and actions are saved in the test case as shown below.

Click Run to execute recorded test cases in your desired browser.

Script Code for Record and Playback

WebUI.openBrowser('')

WebUI.navigateToUrl('http://demoaut.katalon.com/')</p>

WebUI.click(findTestObject('Page_CURA Healthcare Service/a_Make Appointment'))



WebUI.click(findTestObject('Page_CURA Healthcare Service (1)/button_Login'))



WebUI.selectOptionByValue(findTestObject('Page_CURA Healthcare Service (2)/select_facility'), 'Hongkong CURA Healthcare Center',



true)



WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/input_hospital_readmission'))



WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/input_programs'))



WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/div_input-group-addon'))



WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/td_3'))



WebUI.setText(findTestObject('Page_CURA Healthcare Service (2)/textarea_comment'), 'Katalon')



WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/button_Book Appointment'))



WebUI.closeBrowser()

Rename Page Folders and Elements while Recording

To organize your test scripts in page object pattern, you need to add test objects in the folder corresponding to the page. This will help you reuse and maintain the objects.

Scenario: Login with valid data

1. Launch the application under test (Example: http://demoaut.katalon.com/)
2. Click the Make Appointment button
3. Enter a valid username, password, and click Login

Step 1: Launch Katalon Studio and click First Test Case on the main toolbar. Provide a name for your test case and click OK. An empty test case will be created.

Step 2: Click Record Web on the main toolbar.

Step 3: The Record dialog will be displayed. Select a browser and click the Record button to start recording the test case.

Step 4: Once your application has been launched, click on the Make Appointment button. You will be directed to the Login page.

Step 6: Rename the page name from "Page_CURA Healthcare Service" to "Page_Home Page."

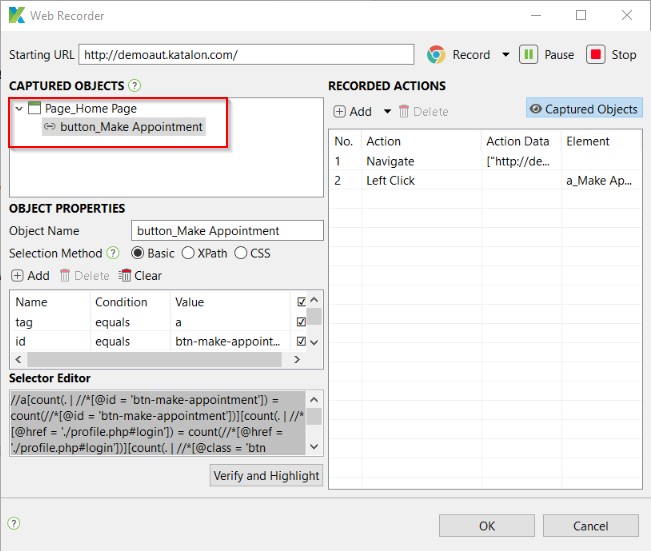

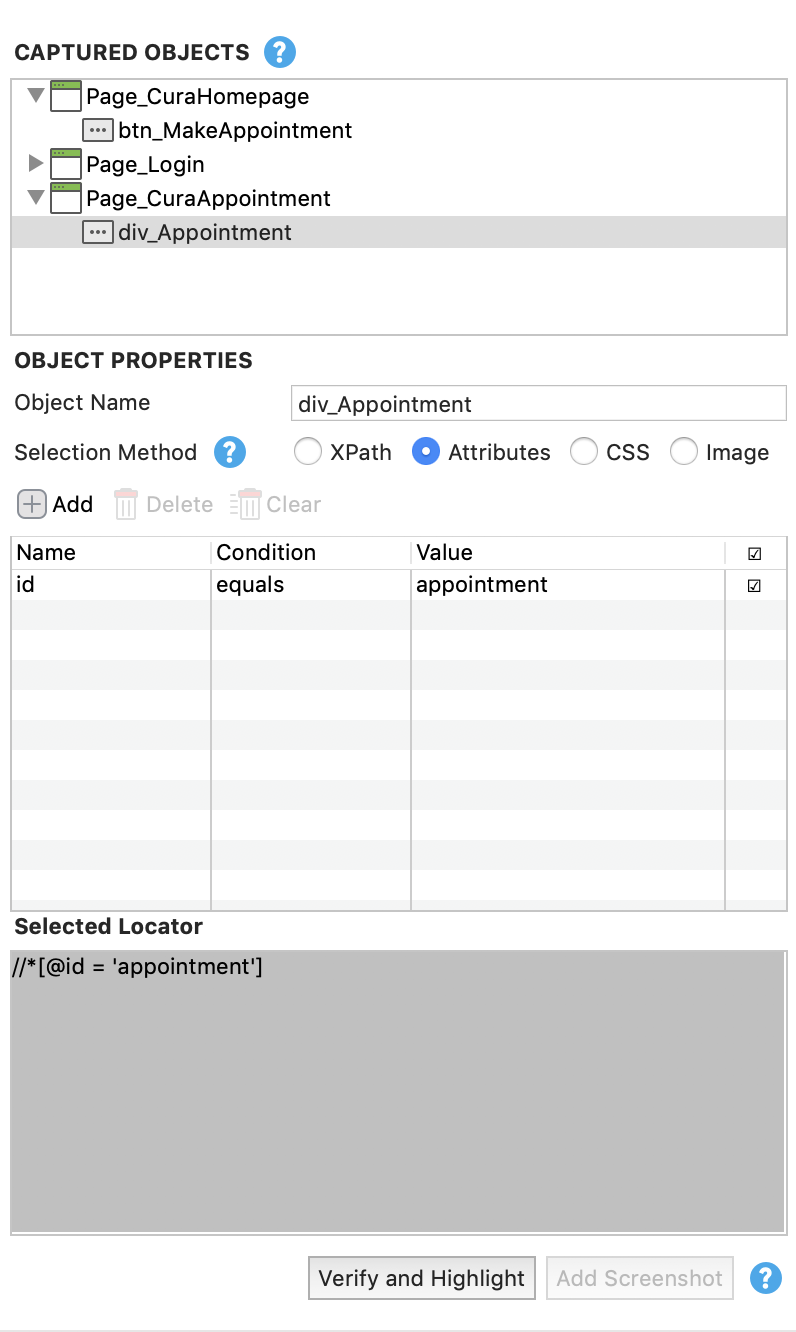

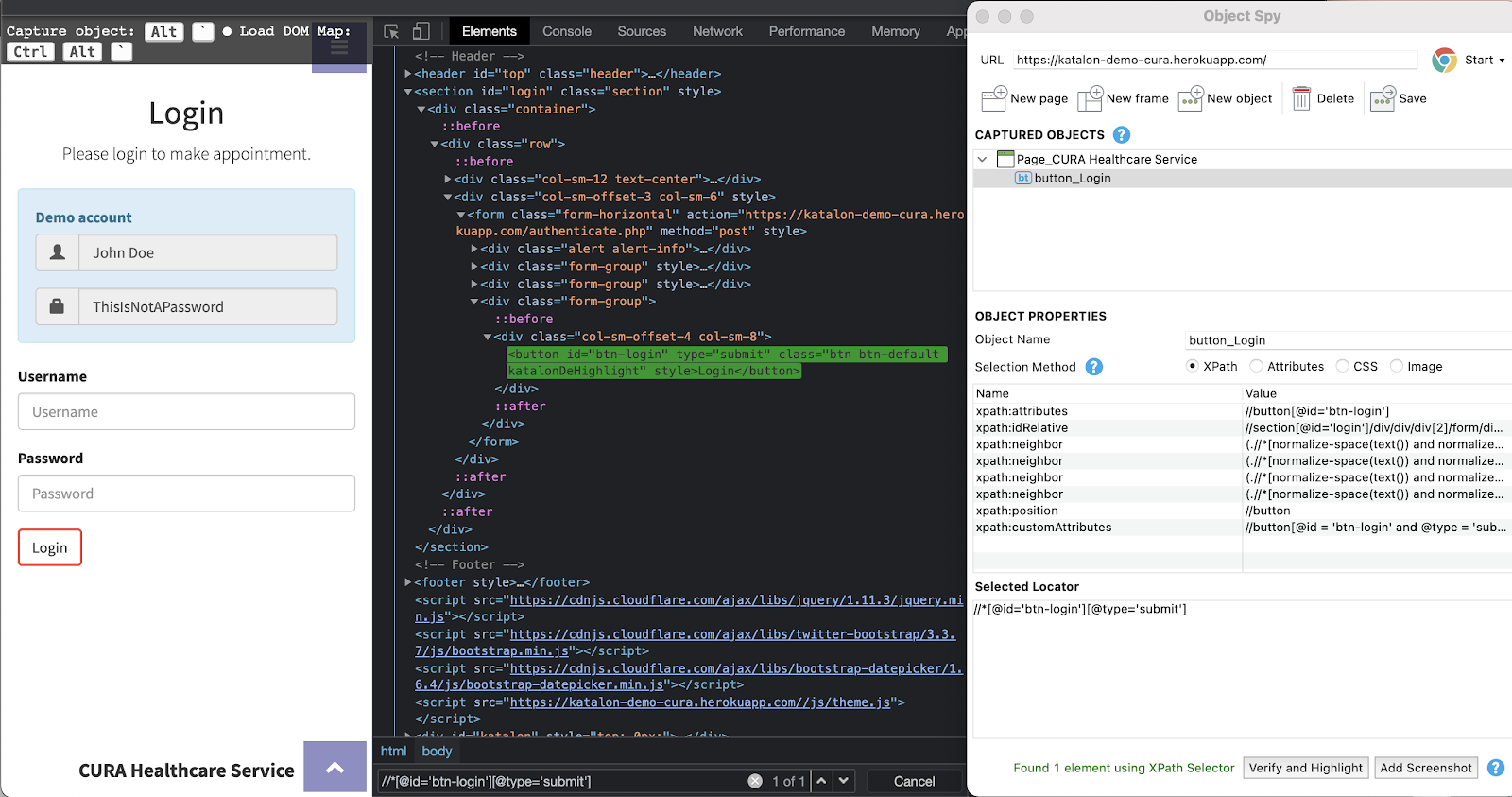

Step 7: In the Captured Objects frame, select the a_Make Appointment element.

Step 8: Rename the element name from "a_Make Appointment" to "button_Make Appointment."

Step 9: Go back to the recording browser and continue to record. Click Login.

Step 10: Repeat the same steps above to change the name of the object Login and its folder.

Step 11: Rename the Page name from "Page_CURA Healthcare Service" to "Page_Login."

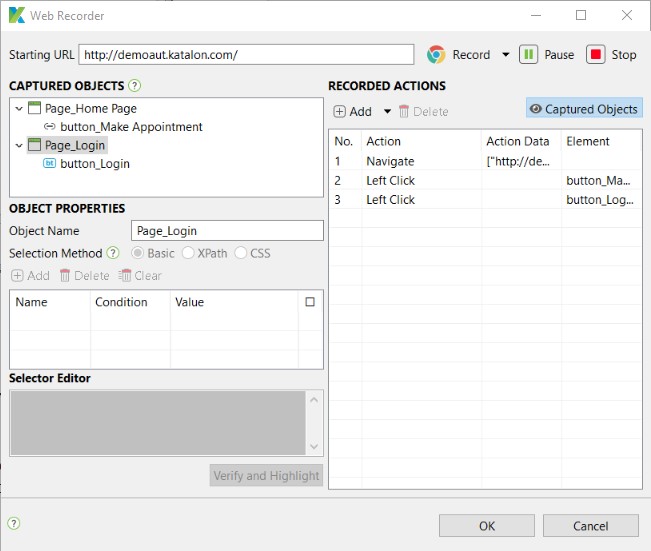

Step 12: You can stop recording by clicking Stop. Click OK to save recorded actions into Katalon Studio.

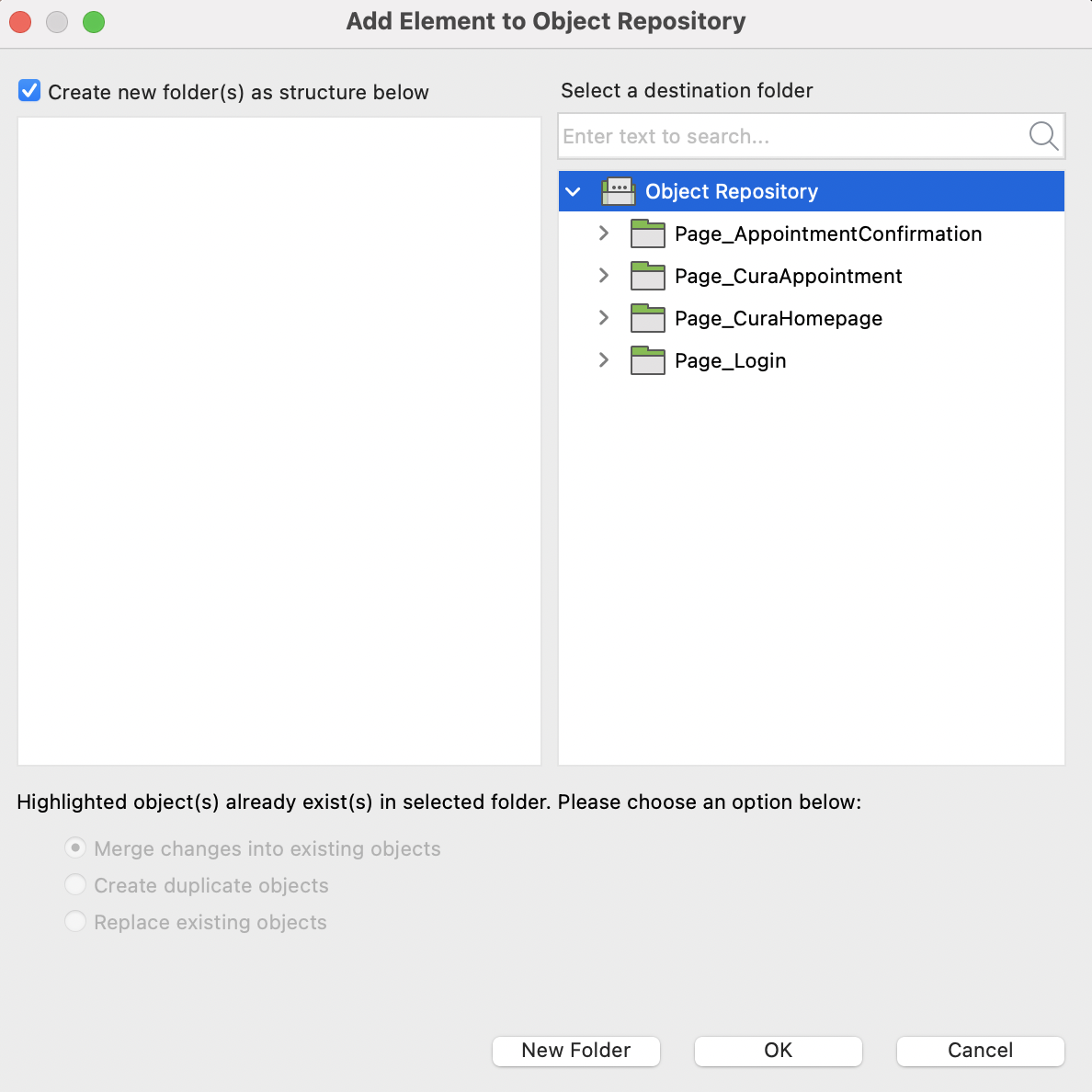

Step 13: You will be prompted to save the captured objects to Object Repository, which can be reused whenever needed. You can also create a folder to maintain page objects in your desired structure. Click OK to continue.

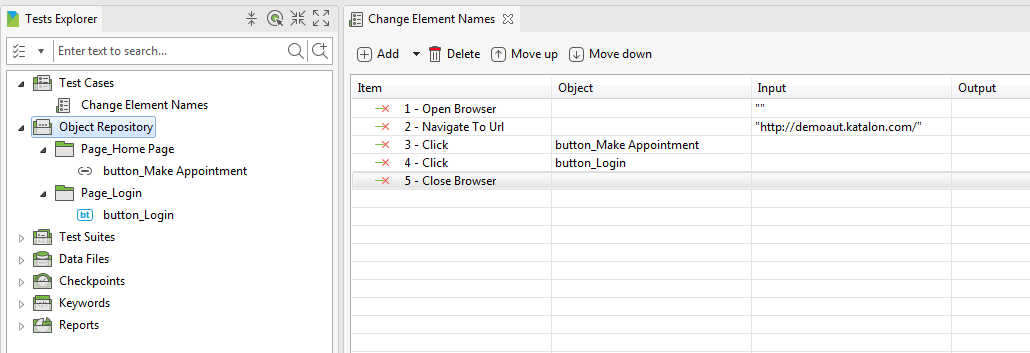

Step 14: Recorded objects and actions are saved in the test case as shown below.

Click Run to execute the recorded test cases in your desired browser.

Source Code:

import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject</p>

import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUI



WebUI.openBrowser('')



WebUI.navigateToUrl('http://demoaut.katalon.com/')



WebUI.click(findTestObject('Page_Home Page/button_Make Appointment'))



WebUI.click(findTestObject('Page_Login/button_Login'))



WebUI.closeBrowser()

Thus we can record the actions being performed using Katalon Studio. However, there are a few actions which cannot be recorded.

What cannot be recorded?

Though recording your tests saves time, we cannot validate some scenarios such as Web Table handling, switching to multiple frames, switching to windows, handling captcha, image recognition, and video playbacks.

You can download the source code here.

For further instructions and help, please refer to Recording WebUI Test and Record and Playback tutorials.

https://docs.katalon.com/katalon-studio/docs/create_test_case_using_record_playback.html

https://docs.google.com/document/d/10xeMf8Gd8_I0D7f3EUbgEhdmIY-G27XERRn3LPJktnY/edit?usp=sharing

Katalon Studio Tutorial: Synchronizing commands while recording

What is Synchronization?

Synchronization is a mechanism which allows multiple threads to work in parallel. In test automation, the application under test (AUT) and the automation tool we employ should collaborate to progress the test execution. In order to achieve this and avoid execution failures, we need to use synchronization commands. This tutorial shows you how to do just that.

Scenario:  Login with valid credentials

1. Launch the application under test (URL: http://demoaut.katalon.com/)
2. Use Wait For Page Load keyword
3. Use Wait For Element Visible keyword for Make Appointment button
4. Click on Make Appointment
5. Use Wait For Element Visible for Login button
6. Enter valid username, password and click on Login button

At runtime recording, we can add synchronization commands to wait for page load, wait for element present, wait for element visible, etc.

Step 1: Launch Katalon Studio and click on the New Test Case button from the main toolbar. Provide a name for your test case and click OK. An empty test case will be created.

Step 2: Click on Record Web from the main toolbar.

Step 3: The Record dialog would be displayed, where recorded actions will be shown.

Provide the URL of application under test.

Step 4: Select a browser and click on the Record button to start recording the test case

Step 5: Once your application is launched, move the cursor to 'Make Appointment' and click on the button (wait for Login page gets loaded).

Step 6: You can add synchronization commands in runtime recording in the 'Recorded Actions' pane. Select a step at which the synchronization commands will be added. Click on Add.

Step 7: Click on Add Web UI Keyword

Step 8: The system will add the drop down command

Step 9: Select Wait For Page Load keyword.

Step 10: Here, we have selected 'Wait For Page Load' keyword

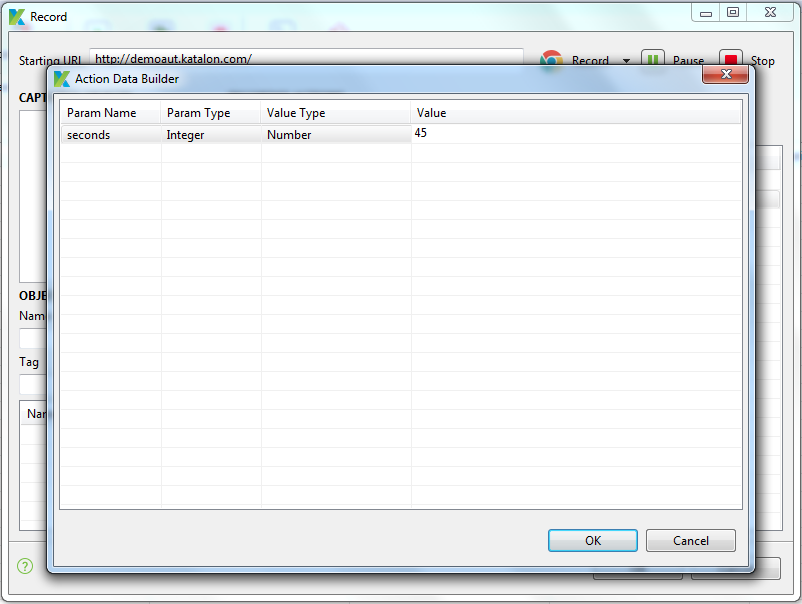

Step 11: We need to provide the expected time as an input for the command [Katalon uses the default time of 30 seconds]. Tap on 'Action Data' or 'Input' of Wait For Page Load and give 45 seconds [as you typically need] then click on OK.

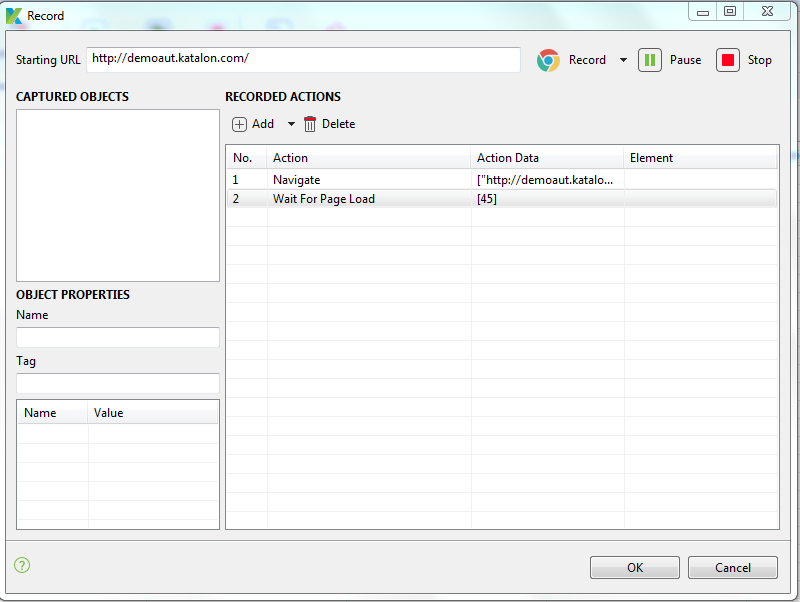

Step 12: It should display the Wait For Page Load command with the provided input as shown below. Now Katalon Studio will wait 45 secs for the page to gets fully loaded to execute next command. These synchronization commands avoid execution failures.

Step 13: You can pause, resume the recording whenever you need it. Let us continue with recording few more actions. Switch to the browser in which you're recording, move to Make Appointment button and click on Make Appointment button.

Step 14: Now to wait for specific element to be loaded and to perform action, we need to add 'Wait for Element Present' command before click on 'Make Appointment' button. let us wait for the button loaded in the DOM

Step 15: So here,  we have added two wait commands, one is to wait till page gets loaded and other is wait till element gets displayed as shown below**.** The reason behind adding two waits is that, though page has been loaded sometimes elements won't be present in the DOM (referring to Ajax based applications mainly).

Step 16: Having said that, we need to provide the expected time as an input for all the wait commands. Tap on Action Data of Wait for Element Present and provide 15 seconds as expected time interval and click on OK Button.

Step 17: Recording pane should look like as shown below**.** Unlike 'Wait for Page Load' command 'Wait for Element Present' command need another parameter as web element for which we are waiting for.

Step 18: To provide web element as a parameter**,** click on Element column of Wait for Element Present, now it will display Captured Objects dialog box. Choose the object and click on OK Button.

Step 19: The recorded actions with synchronization commands should look like as shown below

Step 20: Let's continue the recording, in the browser move the cursor to Login Button and click on Login Button.

Step 21: Now add another wait command up above the left click on the login button.

Step 22: Click on Add button and click on Add synchronization point, it will add default command Wait for Element Present.

Step 23: Then we need to change Wait for Element Present to Wait for Element Visible. Double click on action method of Wait for Element Present, then it would display the down arrow, then click on down arrow button it display all the synchronization commands click on wait for Element Visible command [or use others as per you needed].

Step 24: Provide expected time as an input forWait for Element Visible command and click on OK Button.

Step 25: Wait for Element Visible command should be displayed with expected time. Similar to Wait for Element Present, we need to provide web element as parameter for this command

Step 26: To provide parameter, click on the element from Element column, it will display the page object dialog box and choose the object of Login Button and click on OK Button.

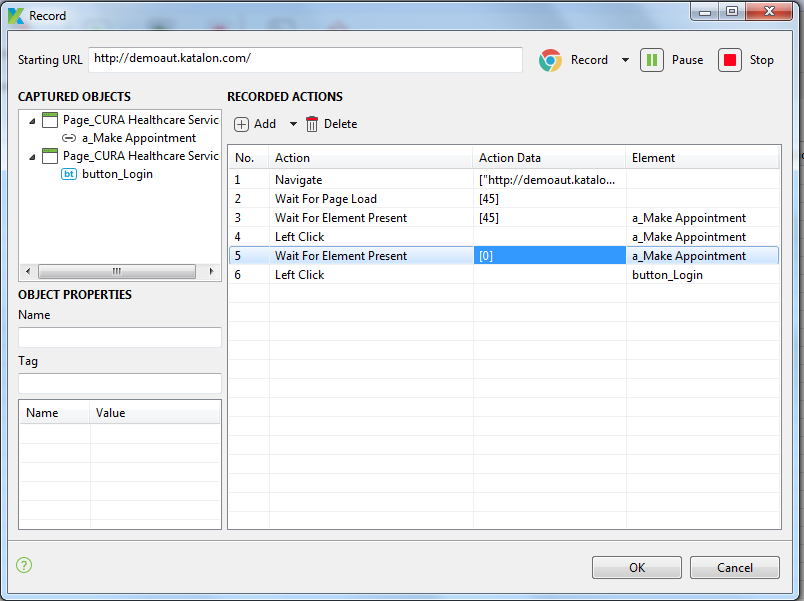

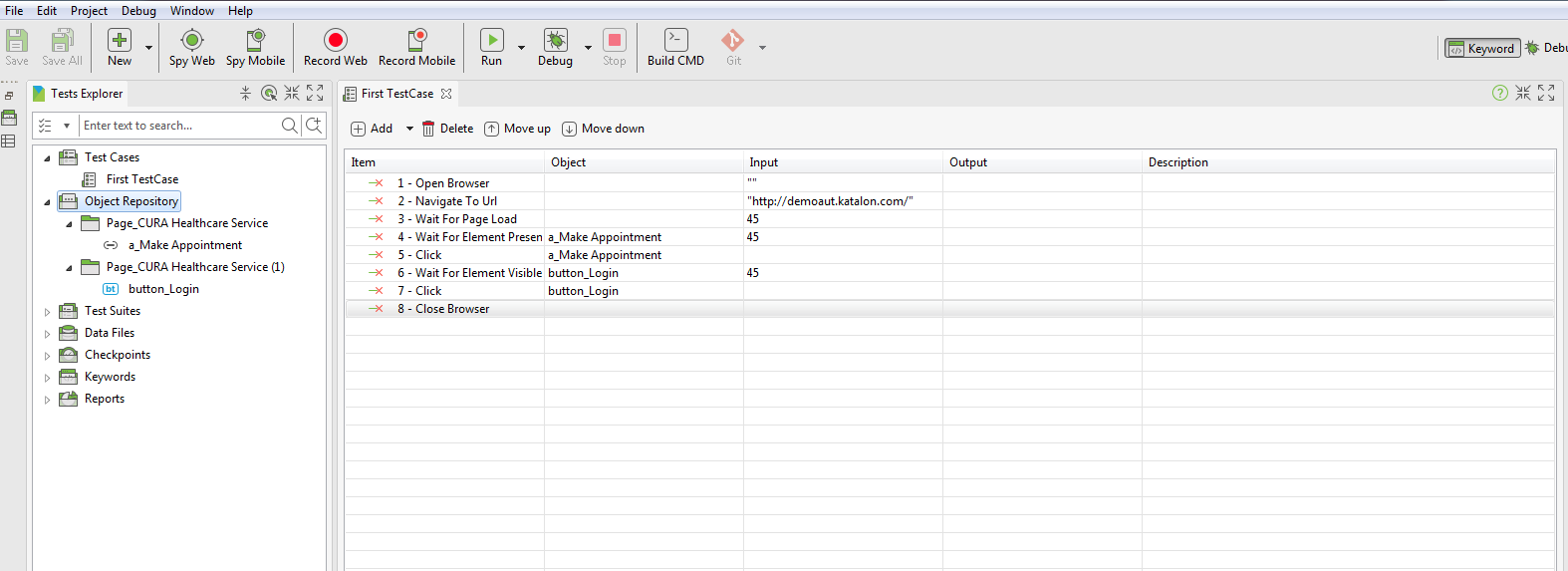

Step 27: Your recorded test script should be as shown below

Step 28: You can stop recording anytime by clicking on 'Stop'. When you are done with recording, click OK to save recorded actions into Katalon Studio.

Step 29: You will be prompted to save captured objects into Object Repository which can be reused whenever needed**.** You can also create a folder to maintain page objects in desired structure. Click OK to continue**.**

Step 30: Recorded objects and actions are saved in the test case Manual mode as shown below.

Click on Script Tab to view the generated code. Katalon Studio allows users to modify the script from the script mode as well. All the above recorded actions can be modified in the script mode.

Script code :

WebUI.openBrowser('')



WebUI.navigateToUrl('http://demoaut.katalon.com/')



WebUI.waitForPageLoad(45)



WebUI.waitForElementPresent(findTestObject('Page_CURA Healthcare Service/a_Make Appointment'), 45)



WebUI.click(findTestObject('Page_CURA Healthcare Service/a_Make Appointment'))



WebUI.waitForElementVisible(findTestObject('Page_CURA Healthcare Service (1)/button_Login'), 45)



WebUI.click(findTestObject('Page_CURA Healthcare Service (1)/button_Login'))



WebUI.closeBrowser()

It is recommended to add synchronization while recording automation test cases in the manual mode or script mode. It is also a good practice to use wait commands to avoid execution failures. Download source code here.

For further instructions and help, please refer to Recording WebUI Test tutorial.

https://docs.google.com/document/d/1DIDi5rGbwDJm2HH5oBovSxgdQ4cVfMn6wIbAEZkvz6k/edit?usp=sharing

Katalon Studio Tutorial: Katalon (Web Browser) Automation Recorder

Installation Link For Chrome Browser: https://chrome.google.com/webstore/detail/katalon-recorder-selenium/ljdobmomdgdljniojadhoplhkpialdid

Katalon Recorder is the Selenium IDE-compatible record & playback tool for browser automation testing. You can use it to record, debug, execute & manage test cases, and export test suites to multiple programming languages such as C#, Java, Ruby, Python, Groovy, Robot Framework, etc.

While Katalon Recorder is already designed to ease the stress of automation testing for everyone, we want to further assist you in the onboarding process with this quick user guide. Continue reading for all essential information, features, and instructions to make the best use of the tool!

Katalon Recorder User Guide

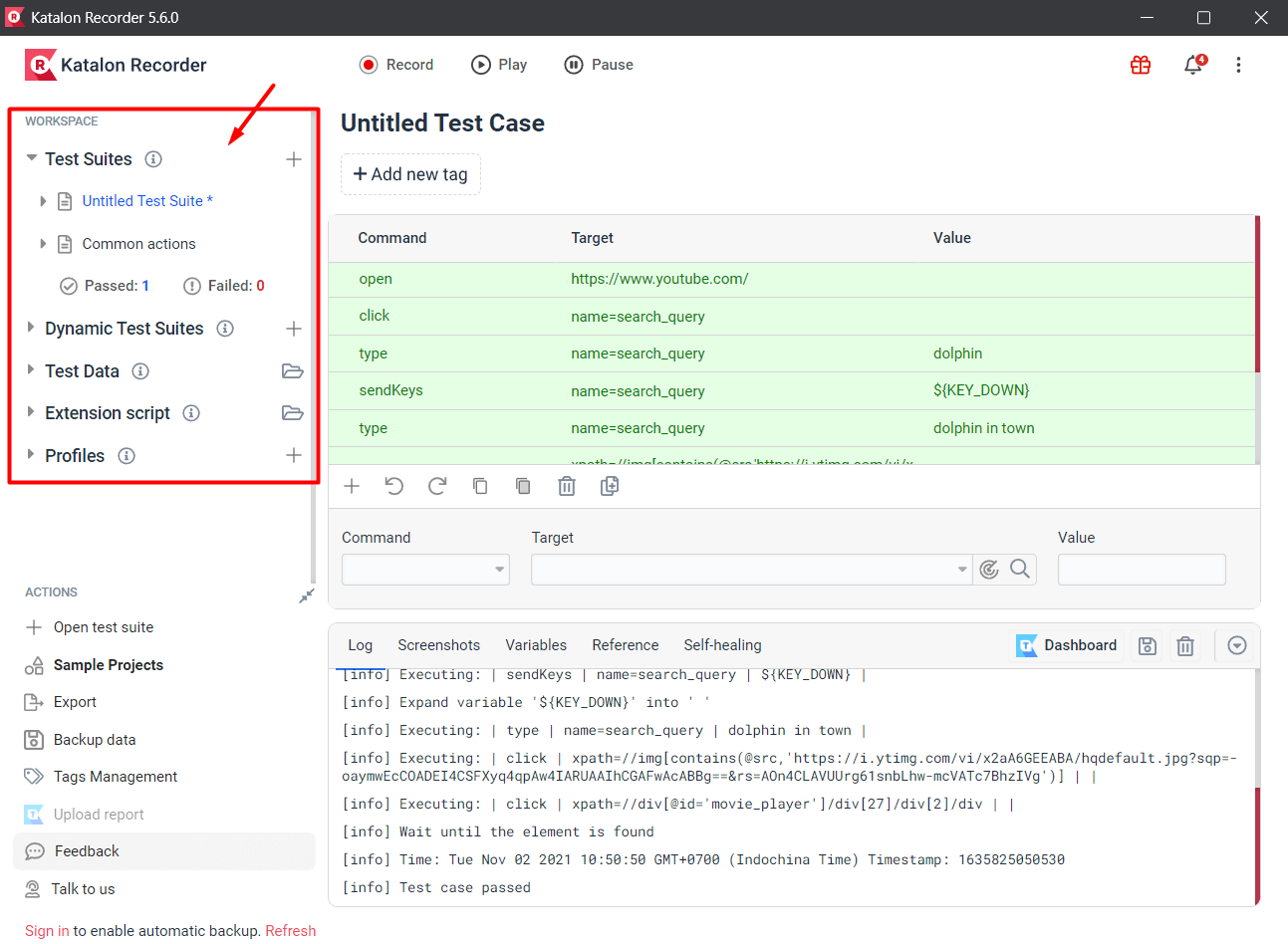

Katalon Recorder main UI contains four sections as follow:

• Main Toolbar
• Test Explorer

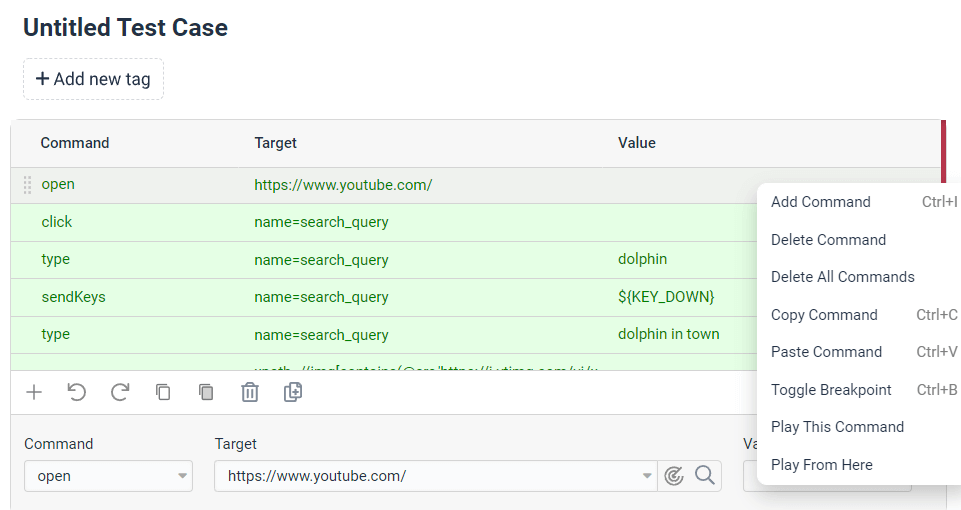

• Test Case Details View

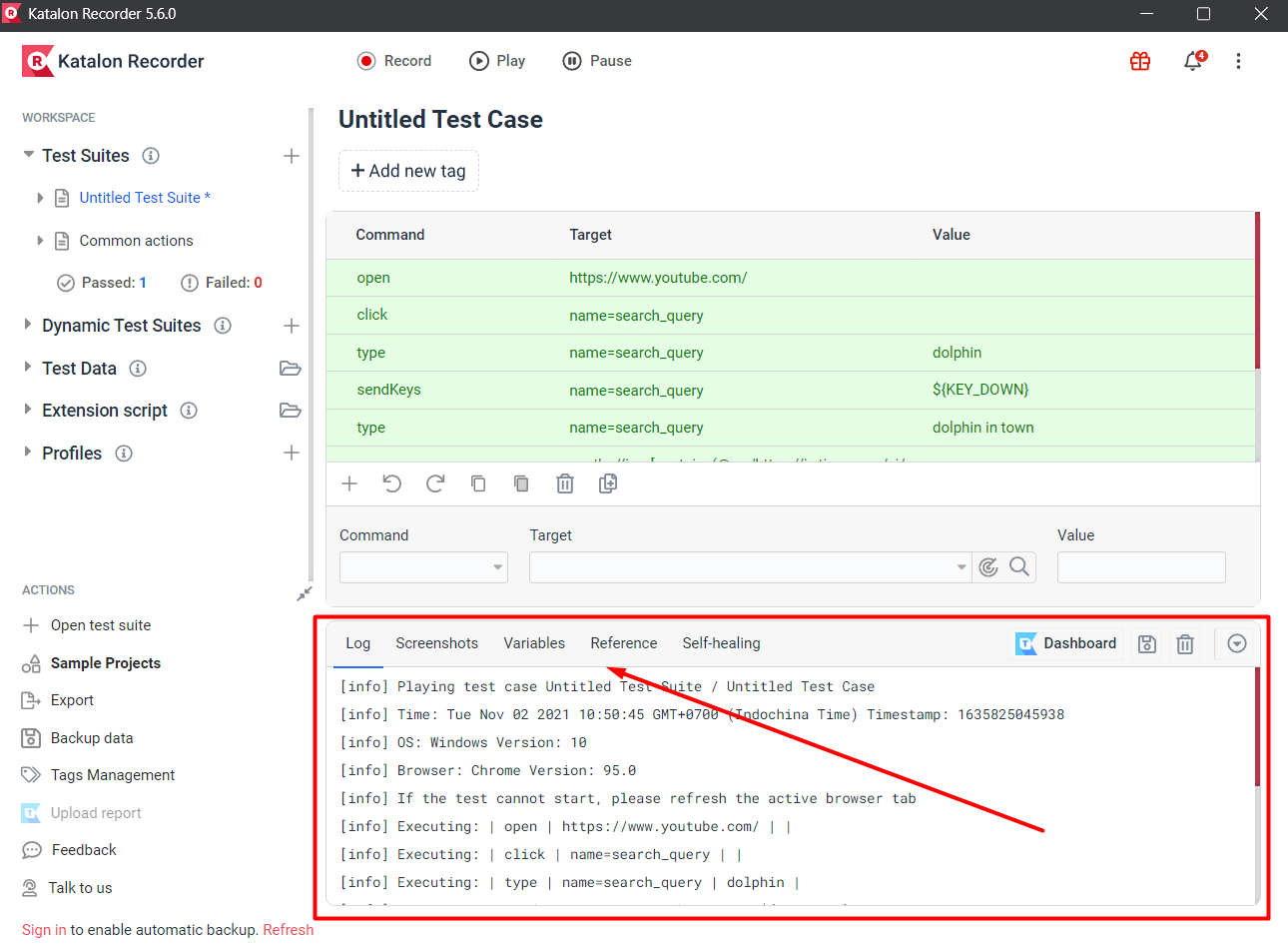

• Log/Reference/Variable/Self-healing

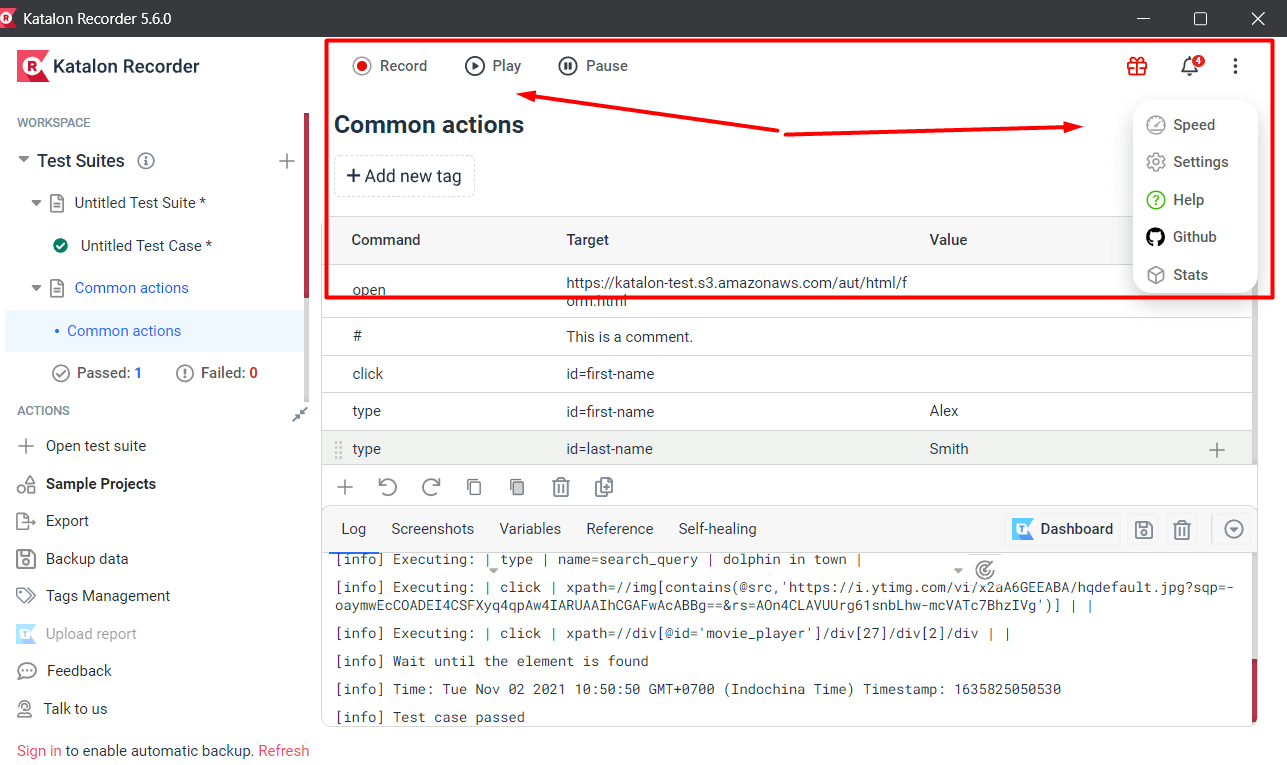

1. Main Toolbar

Katalon Recorder’s main toolbar contains buttons to help you to manage the web recording process.

Actions sidebar

Open Test Suite	Load a test suite from the filesystem to KR
Sample Projects	Add more than a dozen built-in Sample Projects to get started
Export	Export KR tests to Katalon Studio, Selenium WebDriver, New Relics, App Dynamics
Backup Data	Backup your test suites to TestOps to restore them later
Upload Report	Upload your test executions to TestOps to have analytics, report, and insights

Toolbar

Record	Record your tests
Play	Execute selected single test case
Play Suite	Execute selected test suite
Play All	Execute all test suites
Pause/Resume	Pause and Resume current execution
Stop	Stop recording on the current execution
Report (moved to Action sidebar)	Upload logs to Katalon TestOps to keep track of execution history
Export	Export current test suite/test case to various scripting languages and framework
Speed	Adjust play speed
Setting	Port configuration for Katalon Studio Users. Allow users to change the default port used by Katalon Studio to communicate with the active browser
Help icon	Katalon Recorder Support Resources include: User Manual, Videos, Community, and Free Advanced Automation
Github icon	Go to Github Dashboard
Extended features	Look at your Daily Usage or opt for Essential Product Tours

2. Test Explorer

Test Suites	Show the number of Passed & Failed tests
Dynamic Test Suites	A dynamic test suite lets you execute test cases with certain tags dynamically.
Test Data	CSV and JSON files are fully compatible with Katalon Recorder native commands.   Click + to add CSV and JSON files to your workspace.
Extension Script	Extend Katalon Recorder’s functionality by providing custom commands and locators.
Profiles (Global Variables)	Click + to create a new profile in your workspace   Add global variables to your profile Right-click on the profile and choose Use this in a test case

3. Test Case Details View

Katalon Recorder displays the recorded test script in the test case window. All commands and parameters are shown in table format. You can drag and drop any test step to reorganize the test case order

a. Editing Test Case

The Command field shows a drop-down menu

In the Command, Target, Value entry fields, you can see the information of the currently selected command, edit the recorded commands, or add new commands in any given step.

The Command field will show a drop-down menu that suggests commands based on the input. Katalon Recorder supports most of the common Selenium commands, including:

• Actions: Commands that reproduce user interaction on the application under test.
• Accessors: Commands are used to store the results in variables.
• Assertions: Commands that verify the application under test behave as expected.

For more details about Selenium commands, refer to this link.

For a more detailed list of support commands, refer to this document.

b. Context Menu



Right-click on test case details views to display the Context menu. Users can perform most of the essential actions for command at any preferred test step:

Manage test cases

Add Command	Insert a new command in the currently selected step
Delete Command	Remove a single selected command
Delete All Command	Remove all commands of the currently selected test case
Copy Command	Copy the currently selected command
Paste Command	Paste a command at a particular test step

Debug

Toggle Breakpoint

Set a breakpoint to stop at a specific command for debugging purposes

Execute

Play this command	Run a single command for prompt feedback
Play from here	Run from a single command till the end of the script

4. Log/Reference/Variable/Self-healing



• Log: This tab shows the real-time report/log of the test execution. All execution errors, information messages, and execution progress are displayed here.
• Reference: The Reference tab displays the detailed documentation of the selected command. The information helps users to verify the types and number of parameters of each command.
• Variables: The Variables tab displays detailed information (name, target, and values) on the currently selected command while test execution is in progress.
• Self-healing: Self-healing automatically detects valid and broken locators to ensure the test script is executed without interruption. For more information, check out this article.

Katalon Recorder FAQs

• Is Katalon Recorder free?

Katalon Recorder is a free web extension available on Chrome, Firefox, or MS Edge store. To install it, head to your browser store, sign in with your Katalon account (free sign-up), and enjoy all features of Katalon Recorder.



• Does Katalon Recorder have a professional development team?

Katalon Recorder has a dedicated development team that is constantly listening to our users’ needs. We optimize existing features through monthly, sometimes weekly, updates and commit to delivering quality browser automation solutions to individuals and teams at any scale.

For more information on FAQ & Troubleshooting Instructions, visit this document.

Katalon Recorder Release Notes

For more details on previous versions of Katalon Recorder, please visit our Release Notes.

EXERCISE

1. Repeat the steps in “Getting Started For Katalon Studio” (CURA Healthcare Service). 2. Copy the generated codes from Chrome Katalon Recorder. 3. Reopen Katalon previous Project (CURA Healthcare Service). 4. Create a new Test. 5. Paste the copied codes . 6. Run the test.

import static com.kms.katalon.core.checkpoint.CheckpointFactory.findCheckpoint import static com.kms.katalon.core.testcase.TestCaseFactory.findTestCase import static com.kms.katalon.core.testdata.TestDataFactory.findTestData import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject import com.kms.katalon.core.checkpoint.Checkpoint as Checkpoint import com.kms.katalon.core.checkpoint.CheckpointFactory as CheckpointFactory import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as MobileBuiltInKeywords import com.kms.katalon.core.model.FailureHandling as FailureHandling import com.kms.katalon.core.testcase.TestCase as TestCase import com.kms.katalon.core.testcase.TestCaseFactory as TestCaseFactory import com.kms.katalon.core.testdata.TestData as TestData import com.kms.katalon.core.testdata.TestDataFactory as TestDataFactory import com.kms.katalon.core.testobject.ObjectRepository as ObjectRepository import com.kms.katalon.core.testobject.TestObject as TestObject import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WSBuiltInKeywords import com.kms.katalon.core.webui.driver.DriverFactory as DriverFactory import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUiBuiltInKeywords import internal.GlobalVariable as GlobalVariable import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUI import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as Mobile import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS import com.kms.katalon.core.testobject.SelectorMethod import com.thoughtworks.selenium.Selenium import org.openqa.selenium.firefox.FirefoxDriver import org.openqa.selenium.WebDriver import com.thoughtworks.selenium.webdriven.WebDriverBackedSelenium import static org.junit.Assert.* import java.util.regex.Pattern import static org.apache.commons.lang3.StringUtils.join import org.testng.asserts.SoftAssert import com.kms.katalon.core.testdata.CSVData import org.openqa.selenium.Keys as Keys SoftAssert softAssertion = new SoftAssert(); WebUI.openBrowser('https://www.google.com/') def driver = DriverFactory.getWebDriver() String baseUrl = "https://www.google.com/" selenium = new WebDriverBackedSelenium(driver, baseUrl) selenium.open("https://katalon-demo-cura.herokuapp.com/") selenium.click("id=btn-make-appointment") selenium.click("id=txt-username") selenium.type("id=txt-username", ("John Doe").toString()) selenium.click("id=txt-password") selenium.type("id=txt-password", "ThisIsNotAPassword") selenium.click("id=btn-login") selenium.click("id=combo_facility") selenium.select("id=combo_facility", "label=Hongkong CURA Healthcare Center") selenium.click("id=chk_hospotal_readmission") selenium.click("id=radio_program_medicaid") selenium.click("xpath=//section[@id='appointment']/div/div/form/div[4]/div/div/div/span") selenium.click("xpath=(.//*[normalize-space(text()) and normalize-space(.)='Sa'])[1]/following::td[27]") selenium.click("id=txt_comment") selenium.type("id=txt_comment", "sakit") selenium.click("id=btn-book-appointment") selenium.click("xpath=//a[@id='menu-toggle']/i") selenium.click("link=Logout")

https://docs.google.com/document/d/1iyFfCVUTsuzxVo68mSbpzVoooVgSTh9-RgyfPL-dbUk/edit?usp=sharing

Interacting With Web Page

[WebUI] Create and Run Web UI Test Case using Record and Playback

This tutorial demonstrates how to create a Web UI test case with Katalon Studio using Record and Playback.

Go through the scenario "Sign in the shopping page to purchase a tank top" to get familiar with these features. The basic steps are:

1. Create a new project to store recorded actions.
2. Interact with the web page.

• Sign in.
• Purchase a Tank Top.

3. Stop recording and Save scripts.

Shopping Cart sample project is available here.

Create and Run your first Web UI test case

Create New Project

1. In the Test Explorer on the sidebar > click New Project.
2. In the displayed New Project dialog:

• Enter project Name.
• In project Type, select Web.
• In Project, select Sample Web UI...(Shopping Cart), the Repository URL is filled automatically.
• Browse a Location to store your project > click OK.


Record

1. From the main toolbar, click on Web Recorder Utility icon to open the Web Recorder.

2. In the displayed Web Recorder:

• Enter URL: https://demo-store.katalon.com.
• Select a browser to start recording (Chrome is recommended).


3. Wait until the browser is launched and ready to interact.
   When you hover an element, the browser highlights and displays that element's correspondent XPath on the top of the page.

   Tip: You can use hotkey to capture objects (pressing the combination of <Command + back quote>). The captured object will be highlighted with a green border.
4. Interact with the web page. In this scenario, we will sign in and purchase a tank top.
   During your recording, Katalon Web Recorder captures all the objects that you have interacted with. When you enter the Password field, Katalon Web Recorder uses the 'Set Encrypted Text' keyword automatically. This input value will be encrypted to ensure security.

5. Once you finish purchasing > click Save script to stop recording and save the captured objects. Katalon Web Recorder exports a list of objects used in the test case.
   Create a new folder or select an existing one in Object Repository > click OK.

   Katalon Studio allows you to continue recording using the existing test case to reduce your effort on modifying existing ones. Learn more


Playback

To playback the recorded scenario:

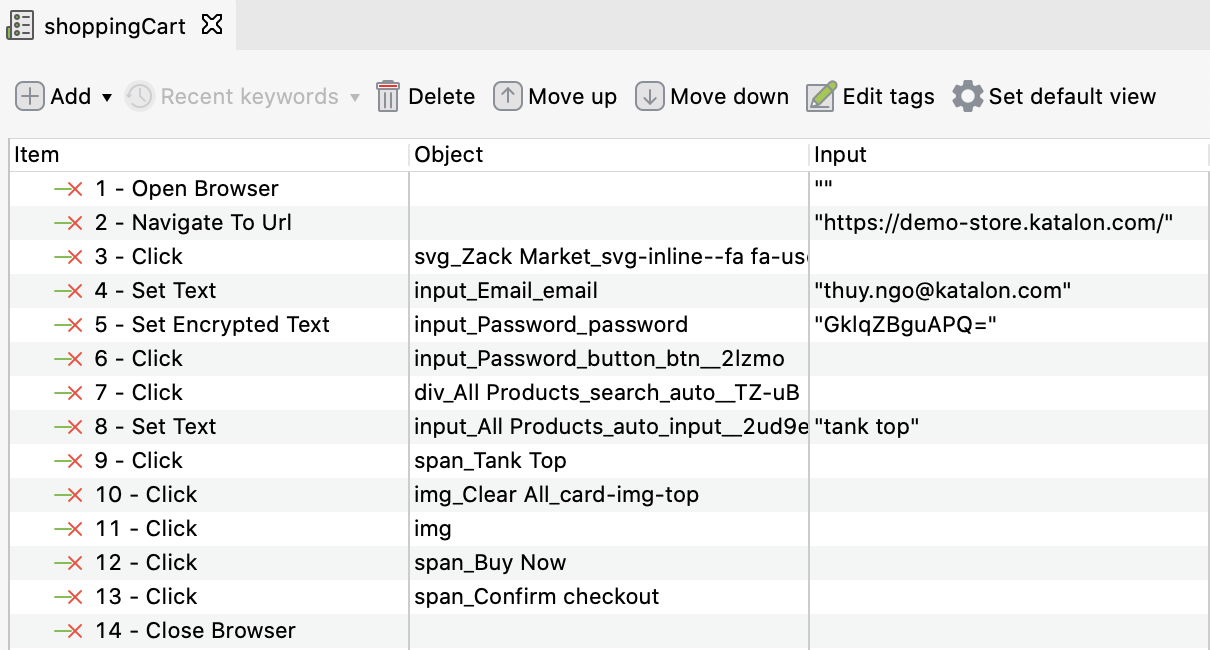

1. Select the test case where you saved the recorded actions.
2. From the main toolbar, select any browser on the drop-down list next to Run.
   Katalon Studio will execute the chosen test case with the recorded steps accordingly.


View the test case in Script mode

import static com.kms.katalon.core.checkpoint.CheckpointFactory.findCheckpoint

import static com.kms.katalon.core.testcase.TestCaseFactory.findTestCase

import static com.kms.katalon.core.testdata.TestDataFactory.findTestData

import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject

import static com.kms.katalon.core.testobject.ObjectRepository.findWindowsObject

import com.kms.katalon.core.checkpoint.Checkpoint as Checkpoint

import com.kms.katalon.core.cucumber.keyword.CucumberBuiltinKeywords as CucumberKW

import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as Mobile

import com.kms.katalon.core.model.FailureHandling as FailureHandling

import com.kms.katalon.core.testcase.TestCase as TestCase

import com.kms.katalon.core.testdata.TestData as TestData

import com.kms.katalon.core.testng.keyword.TestNGBuiltinKeywords as TestNGKW

import com.kms.katalon.core.testobject.TestObject as TestObject

import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS

import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUI

import com.kms.katalon.core.windows.keyword.WindowsBuiltinKeywords as Windows

import internal.GlobalVariable as GlobalVariable

import org.openqa.selenium.Keys as Keys

WebUI.openBrowser('')

WebUI.navigateToUrl('https://demo-store.katalon.com/')

WebUI.click(findTestObject('Object Repository/shoppingCart/Page_Zack Market/svg_Zack Market_svg-inline--fa fa-user fa-w-14'))

WebUI.setText(findTestObject('Object Repository/shoppingCart/Page_Zack Market/input_Email_email'), 'thuy.ngo@katalon.com')

WebUI.setEncryptedText(findTestObject('Object Repository/shoppingCart/Page_Zack Market/input_Password_password'), 'GklqZBguAPQ=')

WebUI.click(findTestObject('Object Repository/shoppingCart/Page_Zack Market/input_Password_button_btn__2lzmo'))

WebUI.click(findTestObject('Object Repository/shoppingCart/Page_Zack Market/div_All Products_search_auto__TZ-uB'))

WebUI.setText(findTestObject('Object Repository/shoppingCart/Page_Zack Market/input_All Products_auto_input__2ud9e'), 'tank top')

WebUI.click(findTestObject('Object Repository/shoppingCart/Page_Zack Market/span_Tank Top'))

WebUI.click(findTestObject('Object Repository/shoppingCart/Page_Zack Market/img_Clear All_card-img-top'))

WebUI.click(findTestObject('Object Repository/shoppingCart/Page_Zack Market/img'))

WebUI.click(findTestObject('Object Repository/shoppingCart/Page_Zack Market/span_Buy Now'))

WebUI.click(findTestObject('Object Repository/shoppingCart/Page_Zack Market/span_Confirm checkout'))

WebUI.closeBrowser()

REFERENCE: https://docs.katalon.com/katalon-studio/tutorials/webui-create-test-case.html#create-and-run-your-first-web-ui-test-case

https://docs.google.com/document/d/1JkVjKOtD4k6kssoT_o0FKB2t7B_PNYHXbdEz-3UShiM/edit?usp=sharing

Analyzing Test Case And Debug

[WebUI] Analyze Test Execution Logs and Debug the Test Case

After executing a Test Case, Katalon Studio provides users with comprehensive execution logs in the Log Viewer. Users can quickly investigate the logs to pinpoint the root causes of any issue and correct the Test execution with Debug utilities.

This tutorial shows you how to analyze execution logs of a failed Test Case in the Log Viewer and debug the Test Case.

Here we reuse the Test Case ("Sign in the shopping page to purchase a tank top") from the tutorial [WebUI] Create and Run Web UI Test Case using Record and Playback.

You can download the sample project here: Shopping Cart Tests.

In our example, the Test Case fails to find a Web element due to an unexpected change in the application under test (AUT). We look for the failed steps in the execution logs, find the root cause, correct the step, and resume execution using the Run from here Debug utility.

Notes:

To use the Debug utility, you need to configure Katalon Studio to NOT terminate browser session when execution finishes. For detailed instructions, refer to this guide: Execute and Debug a Test Case.

Analyze Test execution logs in Log Viewer

After executing the Test Case, Katalon Studio displays the results in the Log Viewer as follows:

Here we use the Tree View mode of the Log Viewer to analyze the logs. This mode displays execution logs in a structural way that helps users trace the Test execution and locate failed steps quickly.

Follow these steps to analyze the logs:

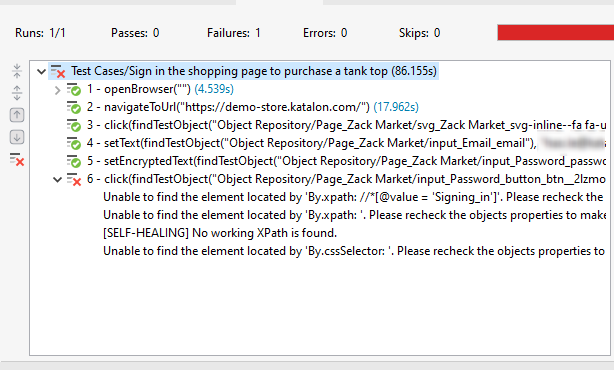

1. Switch to the Tree View. Toggle on the Tree View button on the top-right corner of the Log Viewer.

   The Tree View displays the execution logs in a tree-like structure on the left pane. Each node in the tree corresponds to a step in the Test Case, and failed steps are marked in red.

   On the right pane, the view displays detailed log messages of each step.

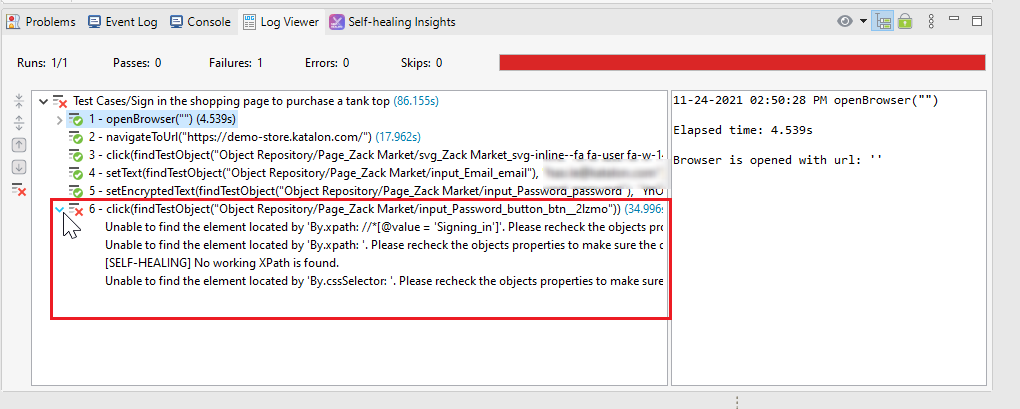

2. To view warning messages of the failed step, click on the expand icon on the left of the step.
   Here the warnings indicate that Katalon Studio fails to find a Test Object with a specific XPath.

3. To view the detailed log message, click on the step. The log message is displayed on the right pane.

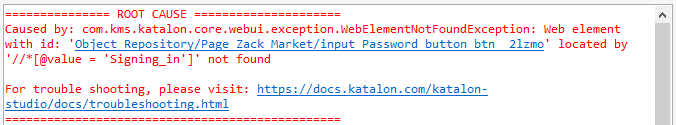

   In the root cause section, the message shows an exception: com.kms.katalon.core.webui.exception.WebElementNotFoundException: Web element with id ... not found.

   To learn how to troubleshoot common exceptions in Web tests, you can refer to this document: Troubleshoot common exceptions when executing web tests.
   Below the root cause section, the message displays the failed step in the form of Test Script.

   From the details provided, we know that Katalon Studio cannot locate the sign-in button with the id 'Object Repository/Page_Zack Market/input_Password_button_btn__2lzmo' and the Object Locator //*[@value = 'Signing_in'].

Notes:

• Execution logs of Test Cases are preserved only in the running session of Katalon Studio. Once you reload Katalon Studio, the logs will disappear.

Debug the Test Case

After finding the root cause, we update the Test Object with a new XPath, and use the Run from here Debug utility to resume the Test execution.

Update the Object Locator

Because a deprecated Object Locator causes the error, we can find the new Object Locator using the browser's Inspector tool.

In our example, we use the Inspector tool to get the XPath of the corresponding Web element.

Follow these steps:

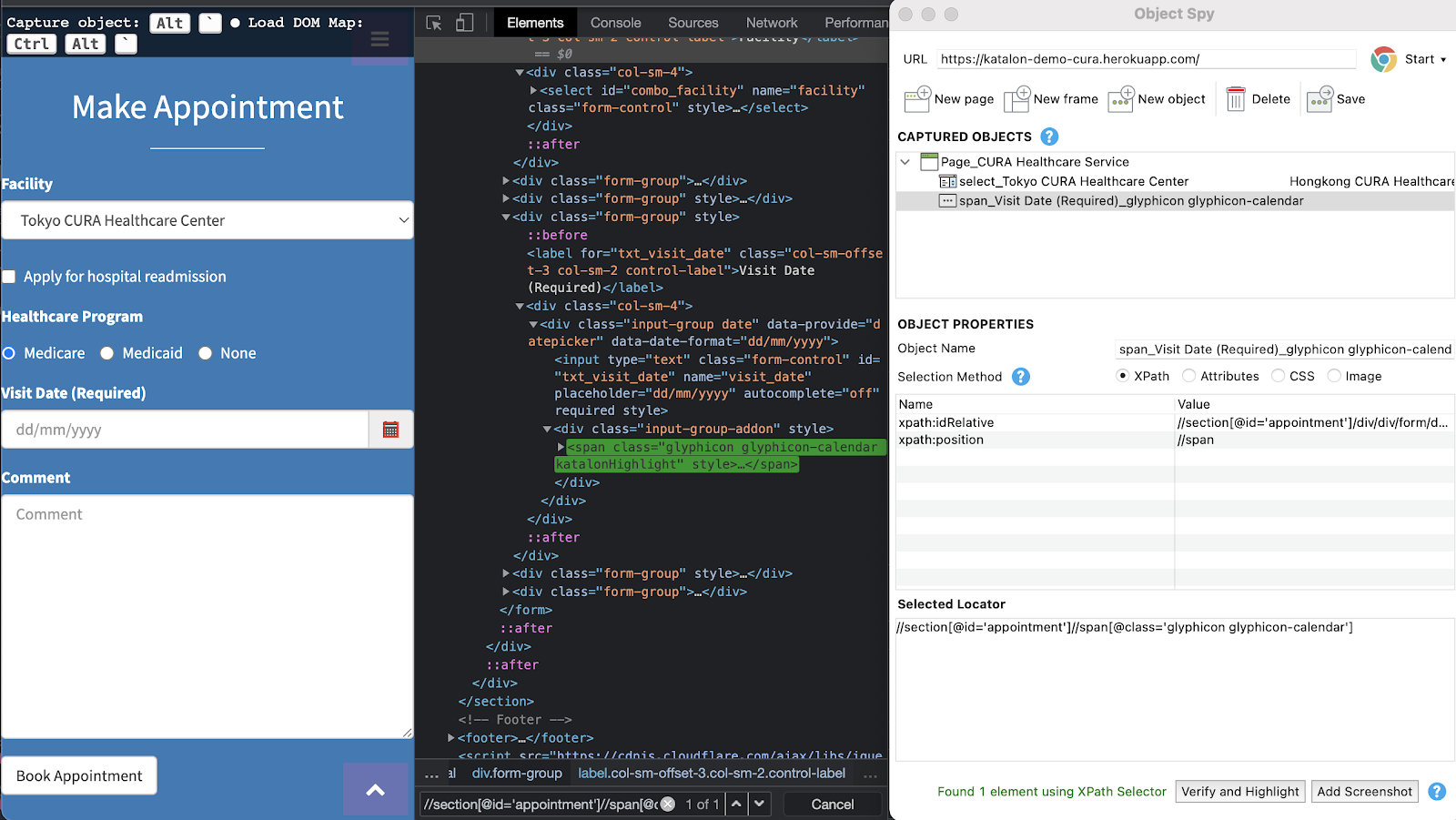

1. To get the new XPath, in the running browser instance, right-click on the target web element, and select Inspect.
   Here we right-click on the Sign-in button that causes the error.

2. In the inspector window, the selected element is highlighted, indicating the target element's location in the HTML DOM. Right-click on the highlighted line and select Copy > Copy XPath.

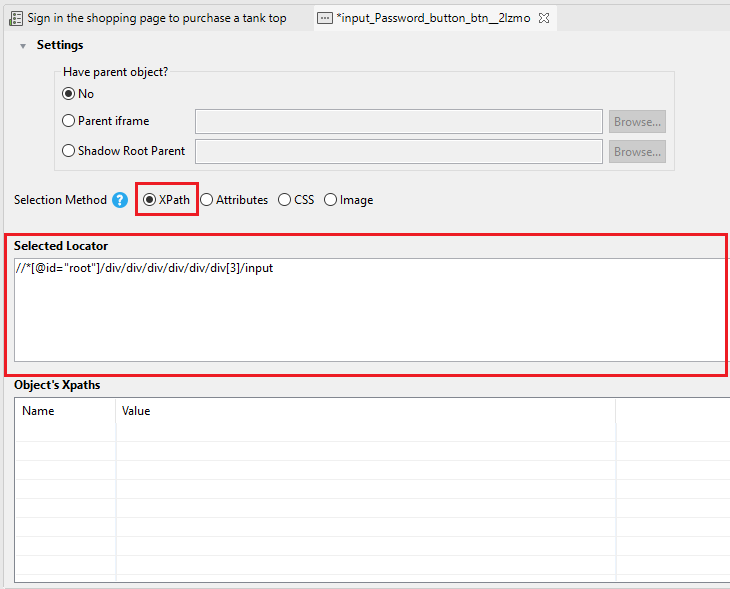

3. Add the new XPath to the Test Object. Open the Test Object, in the Test Object view, specify XPath as the Selection Method and paste the copied XPath from step 2 in the Selected Locator editor.


Resume the Test execution

After adding the new XPath to the Test Object, we use the Run from here Debug utility to resume Test execution without re-executing the entire Test Case.

Follow these steps to resume the Test execution:

1. Resume executing from the failed step. Open the Test Case, right-click on the failed step, and select Run from here > The running browser session.

2. After the Test execution is completed, verify the results in the Log Viewer.


See also:

• View and Customize Execution Log.

REFERENCE: https://docs.katalon.com/katalon-studio/docs/execute-a-test-case-or-a-test-suite.html#debug-from-here

Setting Default (Element) Selection Methods In Katalon Studio

Selection Methods for Web Tests

This article guides you through choosing different strategies to locate WebUI objects in Katalon Studio.

Configure Test Design

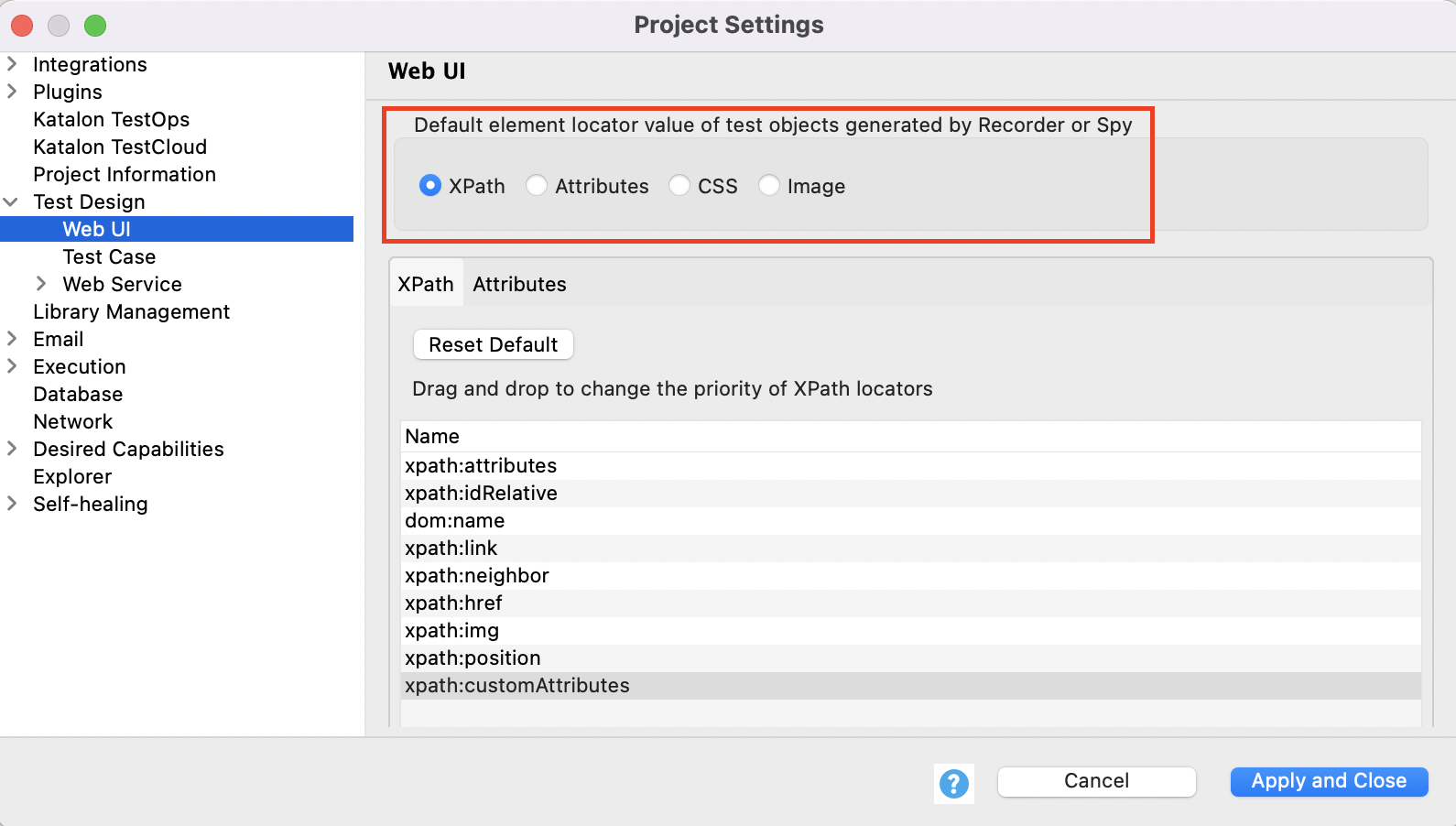

To set the default selection method used in the Spy/Recorder of a project, do as follows:

1. Open Katalon Studio, then go to:

• From 7.6.0 backward: Project > Settings > Test Design > Web Locators.
• From 7.6.0 onwards: Project > Settings > Test Design > Web UI.


2. Under the line Default element locator value of test objects generated by Recorder or Spy, select one of these provided options:

• XPath: Once a test object is captured using Spy/Recorder, a set of XPath locators is generated. The first value is the object's default XPath locator.
• Attributes
• CSS
• Image

3. If you choose XPath or Attributes, you need to configure additional settings. To learn more, see below:

• Configure XPath.
• Configure Attributes.

Configure XPath

You can prioritize XPath locators by dragging and dropping the XPath locators list. To locate the elements, Katalon Studio uses the first XPath as default. If the default XPath fails, the remaining XPaths of the list are leveraged to locate the element.

To return to the default order, click Reset Default.

Below is a list of XPath capture strategies:

XPath capture strategy	Description	Example
xpath:link	Build XPath locators for the link element.	//a[contains(text(), 'Katalon Studio')]
xpath:img	Build XPath locators for the image element.	//img[@alt="Katalon logo"]
xpath:attributes	Build XPath locators based on the tag name and attributes of the selected element. There are 5 preferred attributes to build element locators: ['id', 'name', 'value', 'type', 'action', 'onclick']. If the element has more than one of those attributes, the locator combines the attributes with an operator.	//div[@id="search"] //select[@id="cars" and @name="cars"] //input[@type="submit" and @value="Submit"]
xpath:customAttributes	Build XPath locators based on the tag name and attributes of the selected element. The XPath value combines one or more attributes of all default and customized attributes. (Available from version 8.2.5)	//<tagname>[@id='1234' and @custom1 = 'a1' and @custom2 = 'a2' and @custom3 = 'a3' and @custom4 = 'a4'] //div[@id="search" and @custom1 = 'a1'] //select[@id="cars" and @name="cars" and @custom1 = 'a1' and @custom2 = 'a2'] //input[@type="submit" and @value="Submit" and @custom2 = 'a2' and @custom3 = 'a3' and @custom4 = 'a4']
xpath:idRelative	Build relative XPath locators from the nearest parent that has id attributes.	//div[@id="search"]/a //select[@id="cars"]/div/div[2]/input[@type="submit"]
xpath:href	Build XPath locators of an element that has href attributes and matches or contains a given value.	//a[@href='https://katalon.com'] //a[contains(@href, 'katalon')]
xpath:position	Build absolute XPath locators of a selected element.	/html/body/div[1]/div[1]/div/div[3]/div[2]/div /html/body/section/div/div[2]/div[5]/div[2]/div/div/div[2]/table/tbody/tr[13]/td[1]/div/a/span[3]/span
xpath:neighbor	Build XPath locator based on the more robust neighbors of the selected element.	(.//*[normalize-space(text()) and normalize-space(.)=’How AI can save our humanity’])[2]/preceding::div[3]
dom:name	Build XPath locator based on DOM (Document Object Model). This applies only to elements within a named form.	"document.forms["home"].elements["userName"]"

Configure Attributes

You can select the attributes used for detecting an object.

• To return to the default setting, click Reset Default.
• To add new attributes, click Add.
• To delete an attributes, select the attributes and click Delete.
• To delete all attributes, click Clear.

Switch Selection Method in an object view

In an object view, you can switch from one selection method to another. The detailed content of each selection method is saved automatically.

• Selection Method: Choose an object locating strategy among XPath, Attributes, CSS, or Image.
• Selected Locator: Input the desired XPath or CSS locator manually.
• Object's Properties: Check only the preferred properties of an object.

XPath

For better object recognition, Katalon Studio supports Smart XPath (a.k.a Relative XPath). If an element cannot be consistently located using its direct attributes, Katalon Studio identifies the element by using its more robust neighbors. This method is visually intuitive as it reflects the way users often identify a visible element on the user interface.

Working with XPath, you can:

• Set the priority of XPath locators.
• Decide which object properties are used to recognize objects.
• Override the global settings in a specific object. To do so, open an object view and configure a selection method used for this object in particular.

If XPath is set as the default selection method when spying and recording, Katalon Studio generates a list of Smart XPaths automatically.

Learn more about XPath with this guide: Detecting objects with XPath.

Attributes

A test object is typically built up by several properties. During test execution, Katalon Studio uses them to detect an object.

If Attributes is set as the default selection method during spying and recording, Katalon Studio automatically generates XPath locators that combine all the selected object properties to locate that object. In the Detect object by? column of the Object's Properties table, you can check/uncheck preferred properties.

CSS

To manually input your CSS locator of a test object, open an object view and select the CSS option. In the Selected Locator, enter a CSS locator value.

Change the CSS selector of an object at runtime

To change the CSS value of a test object at runtime, use the following code snippet:

import com.kms.katalon.core.testobject.SelectorMethod

TestObject to = findTestObject('your_test_object_id')

//Change value of CSS selector

to.setSelectorValue(SelectorMethod.CSS, 'your_desired_value')

//Change selection method from another selector to CSS selector

to.setSelectorMethod(SelectorMethod.CSS)

See also:

• getSelectorCollection
• getSelectorMethod
• setSelectorMethod
• setSelectorValue


From version 7.2.2 onwards, Katalon supports visual object recognition. You can learn more about how to create image property for an object at Web Image-based Testing.

See also

• Self-healing Tests
• Generate reliable object locators

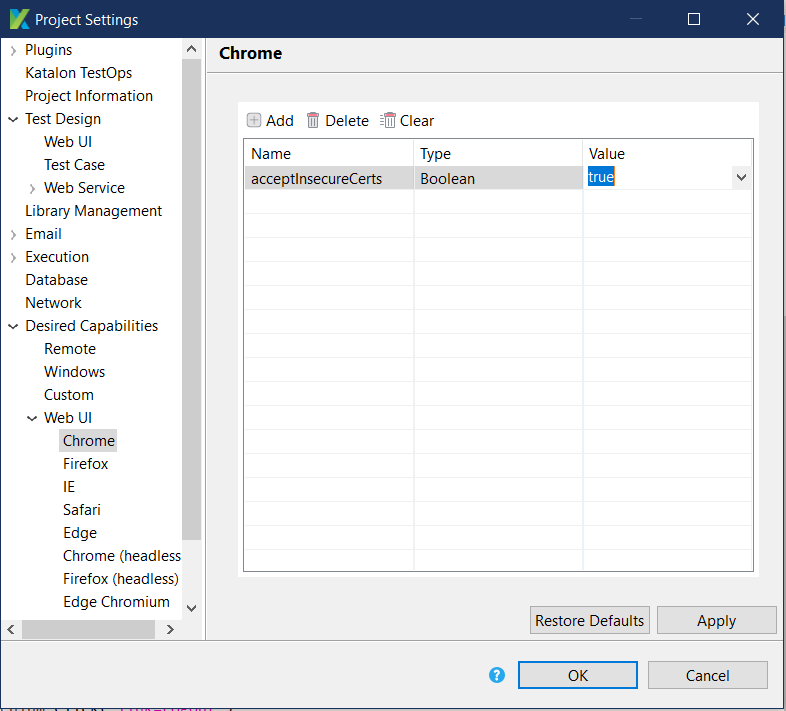

acceptInsecureCerts / Boolean / true

https://docs.google.com/document/d/1d3tzyqswF6JTfgTLhHZSLJJQWKmGDhDzxp45eR4Wo70/edit?usp=sharing

Detecting objects with XPath

With any application under test (AUT), the detection of UI elements is crucial to automated testing. However, identifying them manually requires much time and experience in HTML.

This task becomes even more challenging for elements that could not be identified by their common attributes, elements that change dynamically, or elements that are located deep within another element (nested elements).

This article shows you how to use XPath in Katalon Studio to deal with nested elements and dynamic elements.

What is XPath?

XPath stands for XML Path Language. In an XML document, XPath uses path expressions to navigate through elements, attributes, and select nodes or node-sets.

On a webpage using the HTML DOM (Document Object Model) structure, you can also use XPath to find the location of any element. To learn more about HTML DOM, you can refer to the W3schools documentation: What is the HTML DOM?

There are two types of XPath: absolute XPath and relative XPath (smart XPath).

Absolute XPath

XML documents are treated as trees of nodes, in which the topmost element of the tree is the root element.

Absolute XPath is the path starting from the root. An absolute XPath starts with HTML and forward-slash (/).

For example: /html/body/div[1]/div[1]/div/div[3]/div[2]/div

In Katalon Studio, the XPath capture strategy for absolute XPath is xpath:position. Using absolute XPath is a simple way to solve the problem when dealing with dynamic elements. However, if something changes in the structure of your web page, this XPath might fail. Therefore, absolute XPath is not recommended for detecting dynamic elements.

Relative XPath

You might want to use the relative XPath method to observe a pattern in the attribute values like ID or Class of the web element. Relative XPath (smart XPath) is the path that starts from the middle of the HTML DOM structure. Unlike the absolute XPath that starts from the root, relative XPath starts with the double forward-slash (//), which means it can search for the element anywhere on the webpage. Therefore, you can start from the middle of the HTML DOM structure without writing a long XPath. For example: //a[contains(text(), 'Katalon Studio')].

You can find a list of XPath capture strategies in Katalon Studio using relative XPath in this document: Configure XPath.

How to identify nested elements?

What is a nested element?

Elements can contain other elements. Nested elements are children of their parent container.

For example, the download link in the script below is an element nested in another.

<div class="container">

        <div class="navbar-collapse navbar-right">

                <div class="nav-bar-decorated">

                        <ul>

                                <li><a class="pbtn-download" href="#katalon-download">Download</a> <!-- Deeply nested element  --></li>

                        </ul>

                </div>

        </div>

</div>

It is difficult to identify a nested element, such as the <a> element in the script above. To define the XPath manually, we need to have solid knowledge about the DOM structure of the webpage.

Identify nested elements using XPath

Identifying XPath is an effective way to find nested elements that cannot be identified by common properties such as ID, name, or class. Katalon Studio can generate and optimize XPath for HTML elements, regardless of how deeply nested they are. You can use these XPaths to identify elements without searching through the DOM tree.

The example below illustrates how Katalon Studio generates and optimizes XPath automatically when you spy on the Make Appointment object (a nested element).

Deal with dynamically changing elements

What is a dynamic element?

One of the challenging and time-consuming tasks in test automation is to modify test scripts when the AUT is changed, especially in the early stages of software development. Developers may change identifiers and elements quite often from one build to another. In addition, during the execution, the AUT elements may change dynamically.

Dynamic web elements are elements whose IDs and any other attributes like class names or values keep changing when you refresh the page. Dynamic elements are database-driven or session-driven. For example, when you edit an element in a database, it changes a number of areas of the application under test.

Deal with dynamic elements using XPath

To deal with dynamic elements, you might not want to use absolute XPaths for these elements in test cases. Instead, you might want to use relative XPaths based on specific patterns.

XPath axes are used to search for the multiple nodes in the XML document from the current node context. Katalon Studio supports all XPath axes. The table below shows some common methods you can use to detect dynamic elements:

Method	Description	Example
Checking Multiple Attributes	Add more than one condition to search element using XPath.	//*[@id='btn-login'][@type='submit']
Index	Specify a given tag name in terms of the index value you wish to locate. Use this when more than one element is present in the DOM with similar attributes, and it becomes difficult to search for them.	//div[@class='form-group']//select[1]
Chained XPath	Use multiple XPath expressions and chain them.	//section[@id='appointment']//span[@class='glyphicon glyphicon-calendar']
Contains()	Use the Contains() method to detect dynamic elements that contain static values.	//button[contains(@id, 'btn-login')]<
Last()	Last() is a method used in an XPath expression. It is used to get the very last node.	//ul[@class='list-inline']/li[last()]
Start-with()	The Start-with method finds the element using the starting text of an attribute. This method is useful when the first part of the attribute value is fixed (static), and the rest is dynamic.	//h3[starts-with(text(),'We Care About')]
Preceding	Select all nodes that come before the current node.	//*[@id='btn-login']//preceding::input
Following	Select all elements in the document following the current node( ).	.//*[@id='txt-username']//following::input
Following-sibling	Select the following siblings of the context node.	.//*[@id='txt-username']//following::input
Ancestor	Select all ancestors (parent, grandparent, etc.) of the current node.	//ul[@class='list-inline']/ancestor::div
Child	Select all children of the current node.	//ul[@class='list-inline']/child::li
Descendant	Select all descendant (child node, grandchild node, etc.) of the current node.	//ul[@class='list-inline']/descendant::li

For more information on XPath axes, refer to the W3school documentation: XPath Axes.

To learn how to find object locators in Katalon Studio, see Spy Web Utility.

Next step:

Learn how to input and edit XPath or CSS objects to identify objects on Web UI via Spy Web Utility: Generating reliable object selector using Spy Web utility.

https://docs.google.com/document/d/1YfxAPfkzECHSY2-W99V66EhBkP8ZFCofSRZhW56jV7Y/edit?usp=sharing

Generating reliable object selector using Spy Web utility

This article shows you some examples of generating reliable object selectors using Spy Web Utility.

Spy Web Utility provides an intelligent object capturing capability on websites. To learn more about this utility, see Spy Web Utility.

There are two widely used selectors: CSS and XPath. Locators are object attributes that are used to build up XPath or CSS selectors. Locators help find and identify elements on the web page under test.

Based on the selected method, you can edit the Selected Locator to adjust the current selector of an object or manually add a selector using either an XPath or a CSS selector.

With the CSS or XPath mode of the Selection Method, you can further input and edit XPath or CSS objects to identify objects on web UI.

Below are some web element locators:

Web element locators	Description
Id	Select elements with the specified @id attribute.
Name	Select the first element with the specified @name attribute.
Link text	Select links (anchor tag) element which contains text matching the specified link text.
Partial link text	Select links (anchor tag) element which contains text matching the specified partial link text.
Tag name	Locate elements using a tag name.
Class name	Locate elements using a class name.
CSS	Select elements using CSS selectors.
XPath	Locate elements using an XPath expression.

How to find object locators?

You can capture objects, get web element XPath or CSS locators, and manually input XPath or CSS object selectors using Spy Web Utility. Spy Web Utility provides instant feedback by auto-detecting and highlighting all elements that match with the provided selector.

In this section, we will illustrate how to use the Spy Web Utility to find object locators.

1. Open or create a new project. From the main toolbar, click on the Spy Web icon.

   The Object Spy window displays.
2. In the URL section, input the URL of the website you want to test. We use our demo page in this example: http://demoaut.katalon.com/

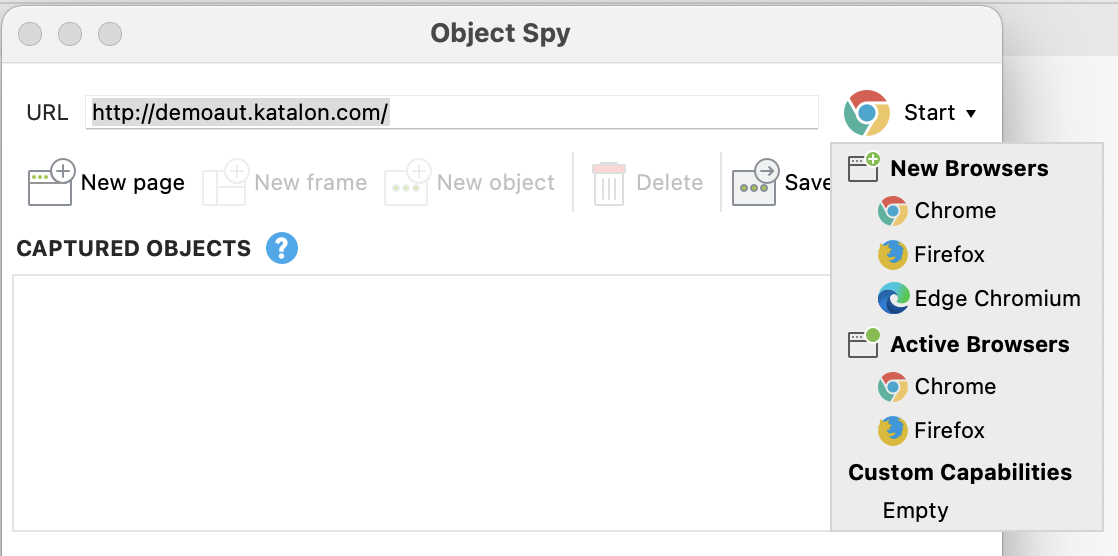

3. To choose a browser, click on the dropdown icon of the Start button. For this example, we choose a new Chrome browser.

4. Click Start. Katalon Studio opens a new Chrome browser and navigates to the demo website.
5. To capture test objects, first, hover the mouse over them. The focused web object is highlighted in red.

   Then, by pressing <Alt + `> or right-clicking and choosing Capture Object, the focused object is captured and added to the Captured Objects list.
   Katalon Studio automatically captures all available properties of the objects. You can change the folder name and edit the value of any properties.

   In the Selection Method section, you can choose XPath, Attributes, CSS, or Image to locate captured objects.
6. In the Selected Locator section, you can manually input your XPath, then click Verify and Highlight. Katalon finds elements that match your XPath locator and highlights them on the web page.
   A single locator might identify many elements because a web page can have many elements that use the same formats and styles. The next section will guide you on how to create unique locators to find complex or dynamic elements. See below: Working with XPath selector.

https://demo-store.katalon.com/

7. To save objects to the Objects Repository, click on Save. Then, select a folder to add the captured objects into. Click OK when done.


Working with XPath selector

The following guide shows how to leverage Katalon Studio Spy Web Utility to locate web elements with XPath selector.

These XPath axes methods are used to find complex or dynamic elements.

In the examples below, we are using our demo page: http://demoaut.katalon.com/

You can find our web sample project available to be downloaded here: Katalon Web Automation Sample Project.

Checking Multiple Attributes

You can identify an element with the combination of multiple attributes to build a unique locator. This method is useful when an element has multiple attributes, but using only one attribute cannot create a unique locator.

For example, you can identify the login button with multiple attributes, like @id and @type, to locate the Login button.

XPath:

//*[@id='btn-login'][@type='submit']

Index

Specify a given tag name in terms of the index value you wish to locate. Use this when there are more than one element present in the DOM with similar attributes and it becomes difficult to search them.

For example, you want to locate the first dropdown in a page.

XPath:

//div[@class='form-group']//select[1]

Chained XPath

You can use multiple XPath expressions and chain them.

For example, use the chained XPath to find the calendar icon in the appointment section.

XPath:

//section[@id='appointment']//span[@class='glyphicon glyphicon-calendar']

Contains()

You can use the Contains() method to detect dynamic elements that contain static values.

Example:

Use the Contains() method to find the login button that contains the id: "btn-login".

XPath:

//button[contains(@id, 'btn-login')]

Last()

Last() is a method used in an XPath expression. It is used to get the very last node.

Example:

There are 3 social icon links, and you want to get the 3rd item by using Last().

XPath:

//ul[@class='list-inline']/li[last()]

Start-with()

The Start-with method finds the element using the starting text of an attribute. This method is useful when the first part of the attribute value is fixed (static), and the rest is dynamic.

Example:

To find the line: "We Care About Your Health", use the Starts-with() method to find the line that starts with "We Care About".

XPath:

//h3[starts-with(text(),'We Care About')]

XPath axes methods

These XPath axes methods are used to find complex or dynamic elements.

Following
Selects all elements in the document following the current node( ).
Example:
By using the following method, you can identify the Password text box, which is located after the Username name field.
XPath:
.//*[@id='txt-username']//following::input

•


Ancestor
This method selects all ancestors (parent, grandparent, etc.) of the current node.
Example:
In the screenshot below, you want to get the ancestors of the ul tag highlighted in red.
XPath:
//ul[@class='list-inline']/ancestor::div

•


Child
Select all children of the current node.
Example:
Using the child method, you can identify all social links as shown in the below screenshot.
XPath:
//ul[@class='list-inline']/child::li

•


Preceding
Select all nodes that come before the current node.
Example:
Using the preceding method, you can identify all nodes that come before the Login button.
XPath:
//*[@id='btn-login']//preceding::input

•


Following-sibling
Select the following siblings of the context node. Siblings are at the same level as the current node, as shown in the screen below. It finds the element after the current node.
Example:
By using the following-sibling method, you can identify the Password text box which located after the Username name field.
XPath:
.//*[@id='txt-username']//following::input

•


https://docs.google.com/document/d/1Cw_rUoOGs_06KEeSKHz5mSOxFWe9r65bw2bF-VDa8BE/edit?usp=sharing

https://docs.google.com/document/d/1EuMTz-xn5PtGZo3pKvryv1SEQT6ajLqVIBzdlDRuqss/edit?usp=sharing

shadow dom object tutorial

https://docs.google.com/document/d/1A4WD12qN9E-7kDWxmsYX9Wze8sABfB4HambegIv4riA/edit?usp=sharing

https://docs.google.com/document/d/1C-xijJdQhbw2rNRZ-rlF-E4yIze264nXKatGbwOnDpM/edit?usp=sharing

https://docs.google.com/document/d/1G1muYiyMX9aH1tWeD-owUbuITHLzMUflmPZVeSUdmFg/edit?usp=sharing

https://dzone.com/articles/how-to-handle-dropdown-using-katalon-studio

https://forum.katalon.com/t/how-to-select-based-on-partial-text-from-options-available-in-the-dropdown-list/12325/5
